Engine Family

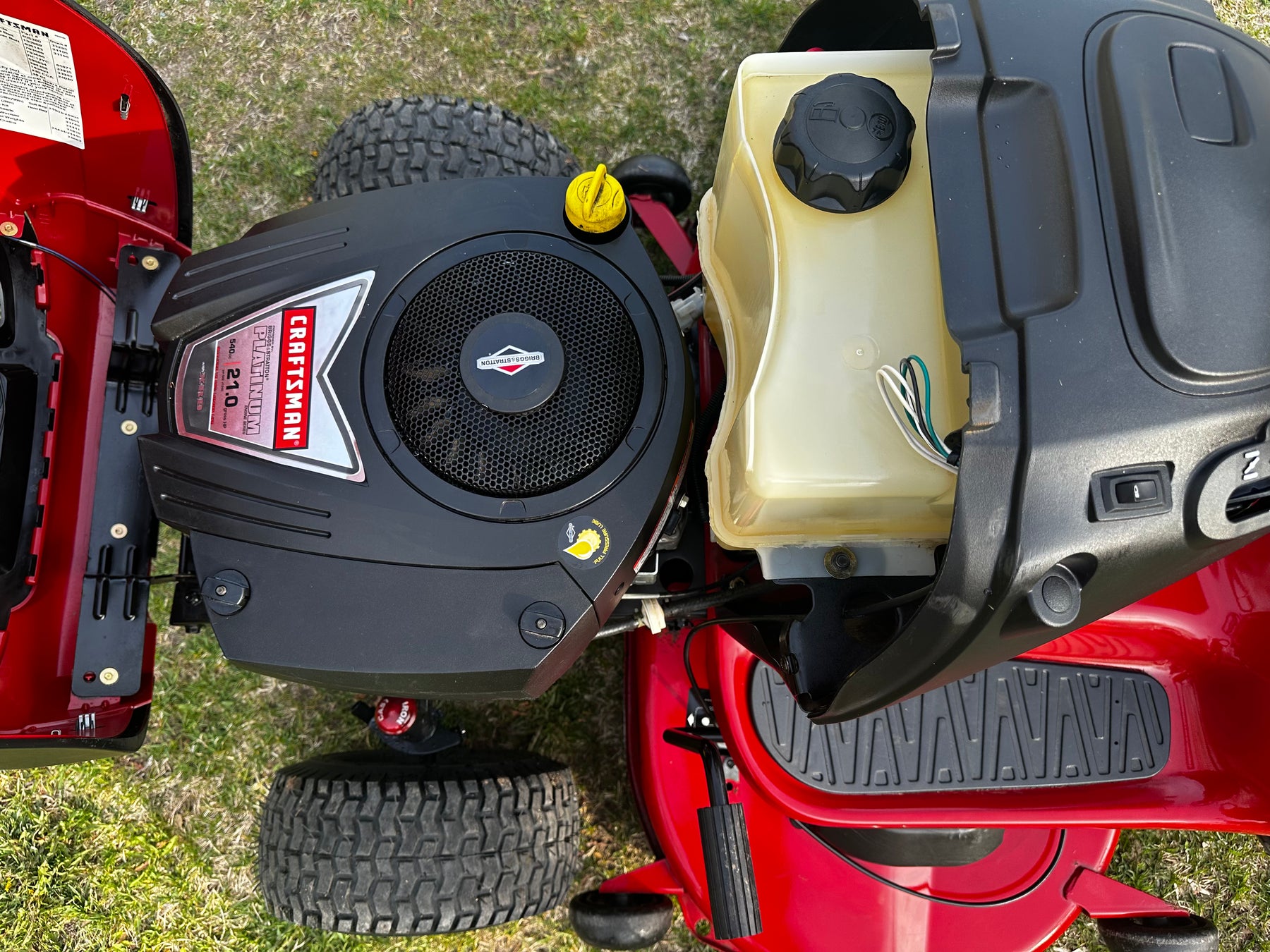

Intek Single-Cylinder Engine Family

Use this page to identify common problems, review likely causes, and find the right replacement parts for this engine family.

View All Models →

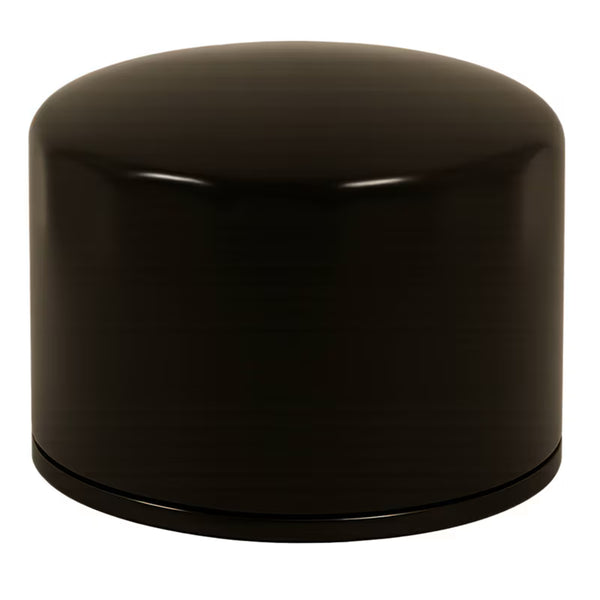

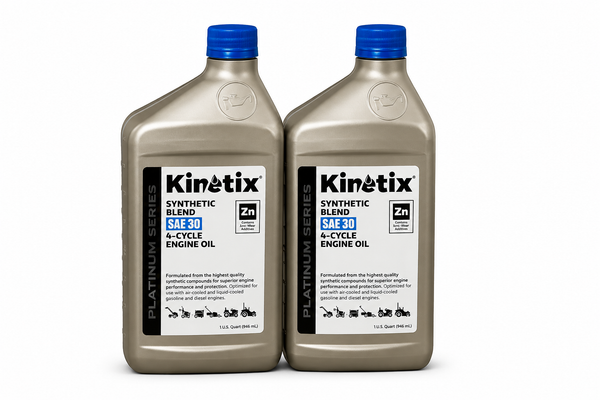

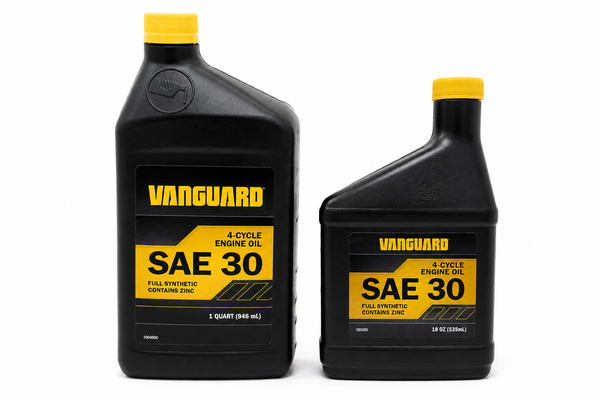

Oil change	Change every 50 hours or Annually - 48 oz (1.5 quarts)

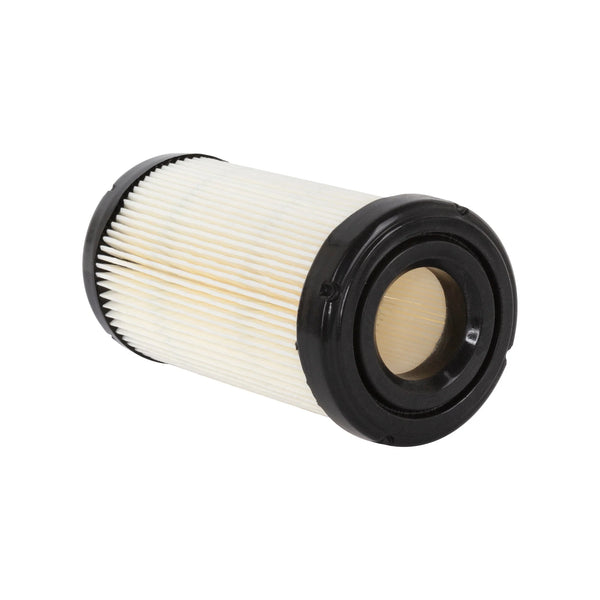

Air filter	Clean every 25 Hours and Change Every 100 hours or Annually

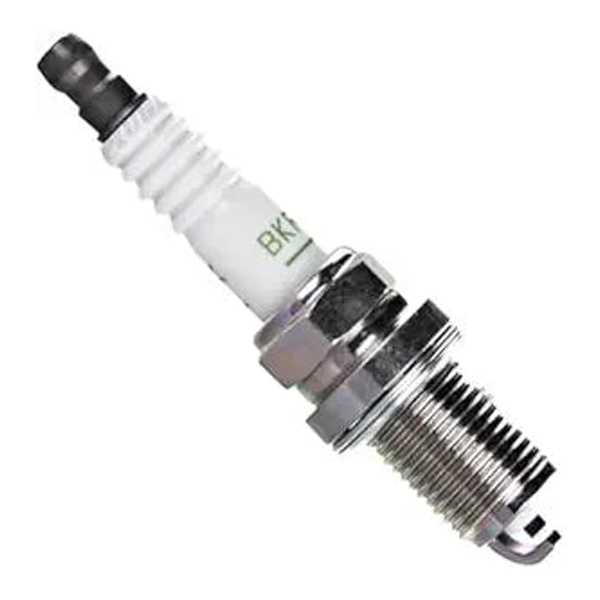

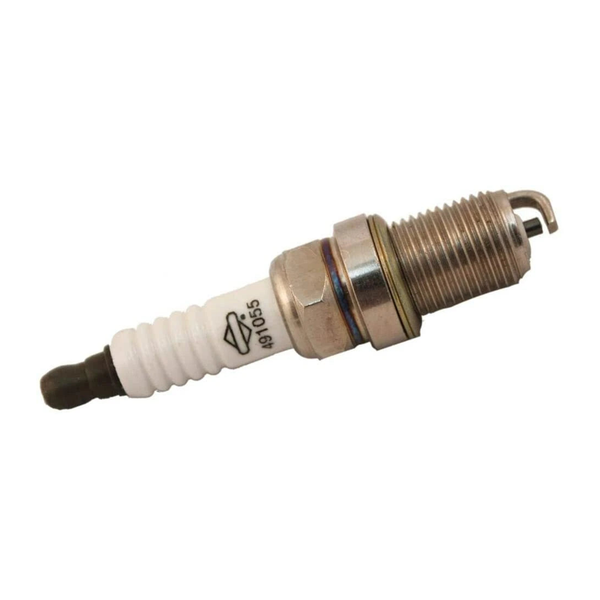

Spark plug	Replace Every 100 hours or Annually

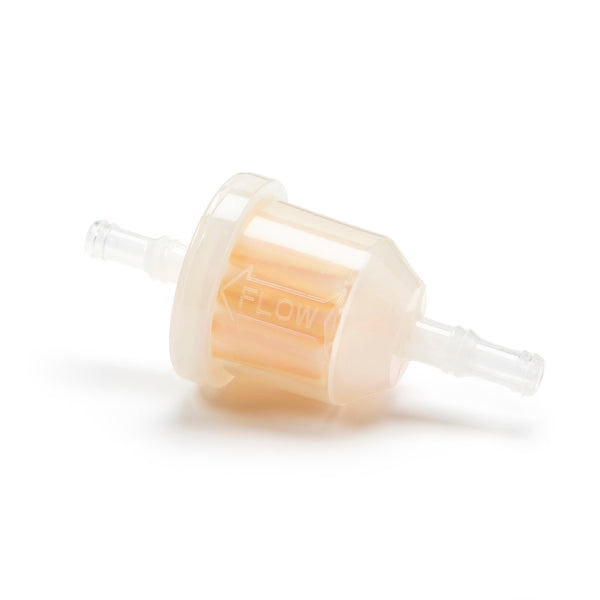

Fuel filter	Replace Every 100 hours or Annually

Cranks But Won't Start

Ignition Coil Failure

Possible Cause

Ignition Coil Failure

A failed ignition coil will prevent the engine from producing spark, resulting in a no-start condition or intermittent running issues. Coils can also fail when hot, causing the engine to shut off after warming up and restart again once cooled.

What to check

Engine cranks but will not start
No spark present at the spark plug
Engine may start and run briefly, then shut off
Engine dies after warming up and will not restart until it cools down
Spark is weak or inconsistent when testing
Confirm spark kill wire is not shorted to ground (disconnect and retest for spark)

When this happens

Common on small engines over time due to heat
May fail suddenly or become intermittent before complete failure
Heat-related failure is common — coil stops working when hot and works again once cooled
More likely on engines with many hours or exposure to moisture

Recommended Parts

Common repair parts for this issue

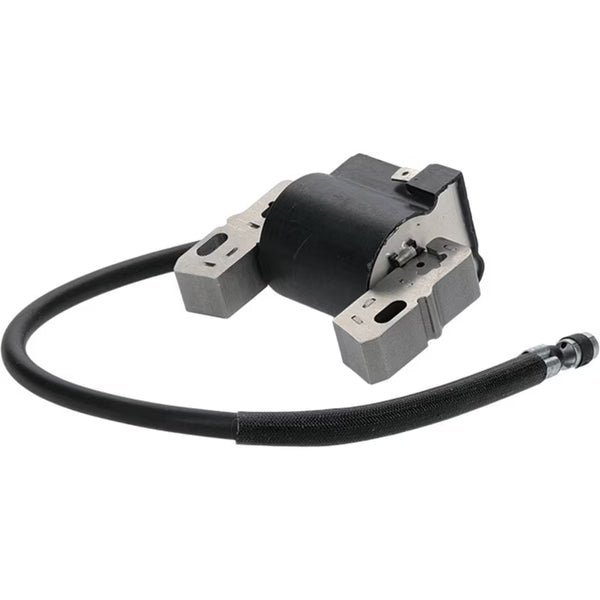

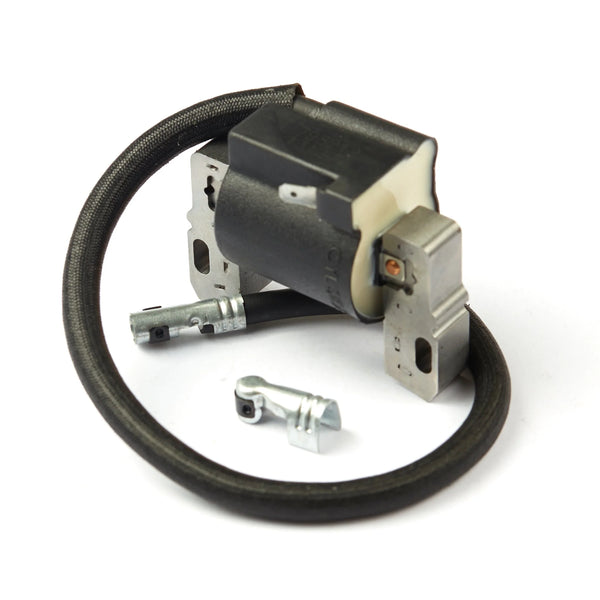

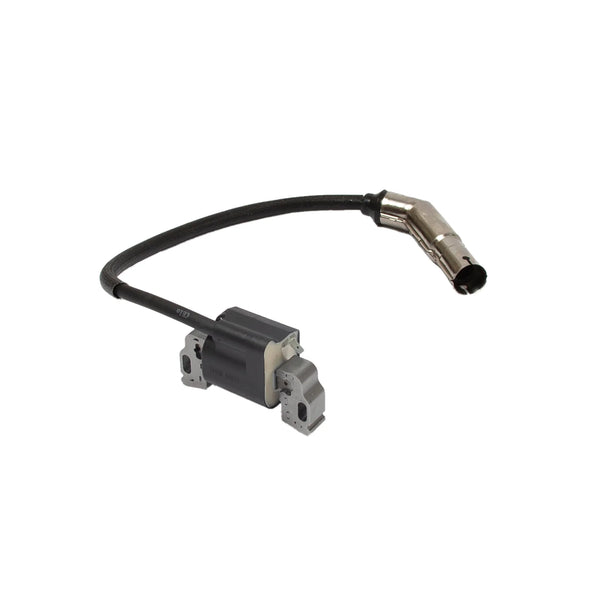

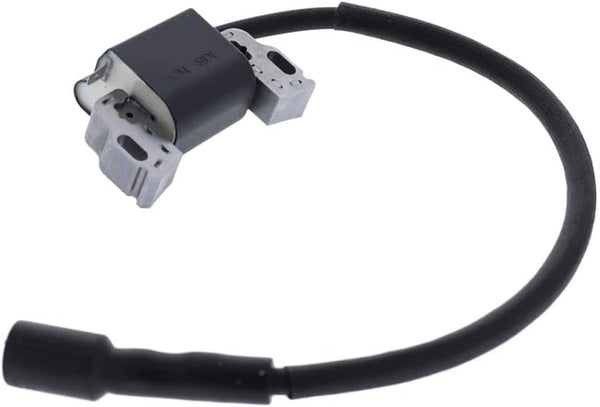

Ignition Coil

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Ignition coil failure is often mistaken for a grounded kill wire or fuel-related issues. Always disconnect the kill wire and confirm no spark before replacing the coil. Ensure proper air gap is set during installation for correct operation.

Clogged Carburetor

Possible Cause

Clogged Carburetor

A clogged carburetor restricts proper fuel flow and air/fuel mixing, leading to symptoms such as no start, hard starting, surging, rough running, or only running with choke or starting fluid.

What to check

Engine cranks but will not start
Engine starts with choke but dies when choke is removed
Surging, rough running, or hesitation
Engine only runs with starting fluid
Remove carburetor bowl and inspect for debris, varnish, or gel-like fuel residue

When this happens

After fuel sits in the engine for extended periods (off-season storage)
When using old or untreated gasoline
After storage without draining the carburetor

Tip:
Installing a fuel shutoff valve allows you to turn off the fuel supply and let the engine run until it uses up the remaining fuel in the carburetor. This helps prevent fuel from sitting inside and forming deposits that can clog the carburetor during storage.

Recommended Parts

Common repair parts for this issue

Attempt to Clean carburetor thoroughly (jets, passages, and bowl)

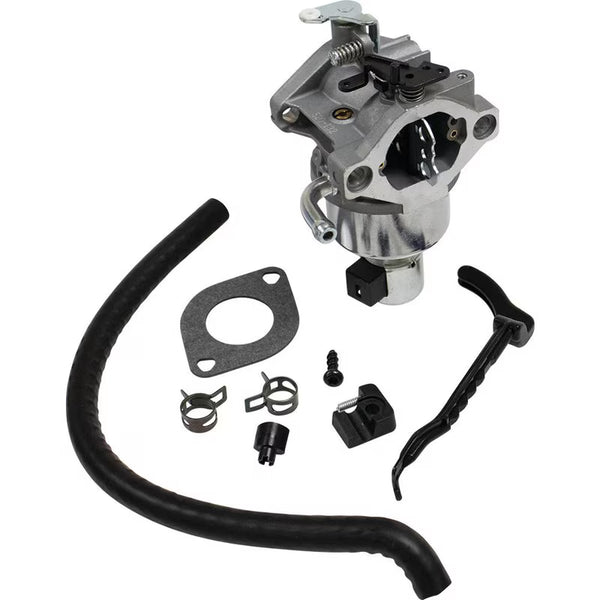

Replacement carburetor (if heavily clogged or damaged)
Fuel filter (replace to prevent recontamination)
Air Filter

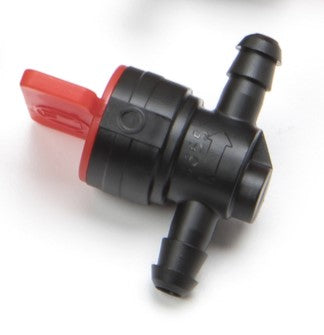

Fuel Shut Off Valve

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Old fuel left in the carburetor can form deposits that clog jets and passages. Running contaminated fuel can also damage other fuel system components.

Hard to Start

If your engine is difficult to start, these are the most common causes on Briggs single-cylinder engines.

Camshaft Compression Release Failure

Possible Cause

Camshaft Compression Release Failure

A failed compression release on the camshaft can make the engine extremely hard to crank or cause it to kick back during starting. This happens when the compression release mechanism no longer lowers cylinder pressure enough for the starter to turn the engine smoothly.

What to check

Engine is very hard to turn over
Starter struggles to crank the engine
Engine may kick back during starting
Battery and starter tests good
Valves are adjusted correctly
No signs of fuel flooding or hydrolock

When this happens

Common on single-cylinder overhead valve engines
More likely as the engine gains hours and internal camshaft components wear

Recommended Parts

Common repair parts for this issue

Camshaft Replacement Kit
Oil Change

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Camshaft compression release failure is often mistaken for a weak battery, bad starter, or valves out of adjustment. Confirm those items first before replacing internal engine parts.

Valves Out of Adjustment

Possible Cause

Valves Out of Adjustment

Improper valve clearance can cause hard starting, poor compression release function, and overall engine performance issues. Valves that are too loose can prevent the engine from cranking smoothly.

What to check

Engine is hard to turn over
Starter struggles or seems get stuck on compression stroke
Engine may kick back during starting
Compression release appears not to function properly
Battery and starter test good

When this happens

Common on single-cylinder overhead valve engines
Often occurs as engine hours increase and valve clearances drift out of spec
May happen after long periods without maintenance

Recommended Parts

Common repair parts for this issue

Valve Cover Gasket

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Incorrect valve adjustment can cause engine damage. Always follow manufacturer specifications for valve clearance. If unsure, consult a repair manual or professional.

Rounded Camshaft Lobes

Possible Cause

Rounded Camshaft Lobes

Worn or “rounded” camshaft lobes reduce valve lift, preventing the engine from breathing properly. This can lead to loss of power, rough running, and possible no start overtime.

What to check

Engine has noticeable loss of power
Engine runs rough or uneven
Poor acceleration or struggles under load
Valve movement appears reduced when inspecting (low lift)
No start conditions
Possible Hard to Start

When this happens

Occurs over time as internal engine components wear
More likely on high-hour engines
Can be accelerated by poor lubrication or contaminated oil
Seen on engines that have run low on oil or with infrequent oil changes

Recommended Parts

Common repair parts for this issue

Camshaft Replacement Kit
Oil Change

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Camshaft lobe wear is an internal engine issue and requires disassembly for repair. Continued operation with worn lobes can lead to further engine damage and reduced performance.

Low Power / Runs Poorly

Rounded Camshaft Lobes

Possible Cause

Rounded Camshaft Lobes

Worn or “rounded” camshaft lobes reduce valve lift, preventing the engine from breathing properly. This can lead to loss of power, rough running, and possible no start overtime.

What to check

When this happens

Recommended Parts

Common repair parts for this issue

Camshaft Replacement Kit
Oil Change

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Camshaft lobe wear is an internal engine issue and requires disassembly for repair. Continued operation with worn lobes can lead to further engine damage and reduced performance.

Blows White Smoke

Head Gasket Failure

Possible Cause

Head Gasket Failure

A blown head gasket can cause compression loss, smoke, poor running, or external oil leaks.

What to check

Engine blowing blue or white smoke
Exhaust smoke coming from the crankcase
Engine oil extremely dark and smells like exhaust
Oil residue on fuel pump screen (if equipped with a fuel pump)

When this happens

The head gasket typically fails between the cylinder and valvetrain area, allowing exhaust gases to leak into the crankcase

Recommended Parts

Common repair parts for this issue

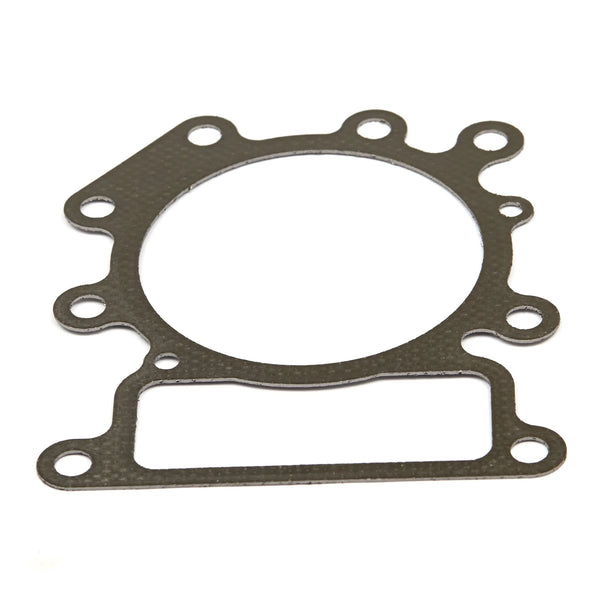

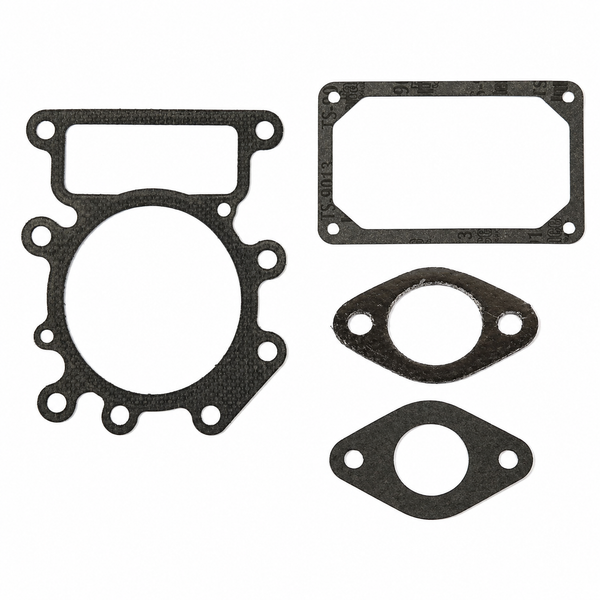

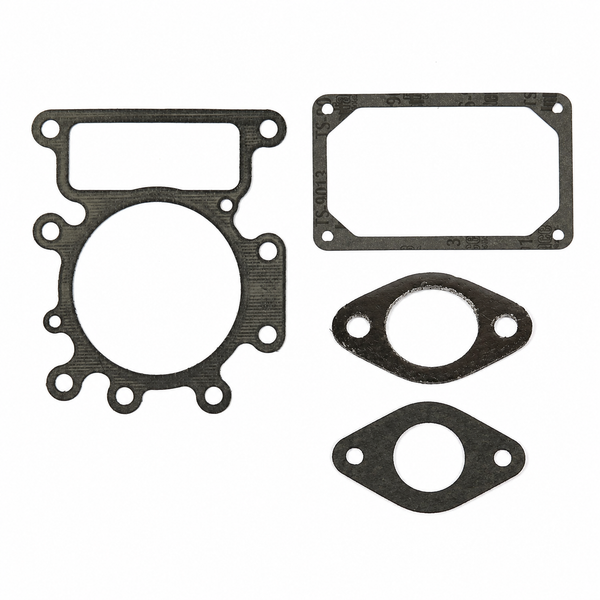

Head Gasket Replacement Kit
Oil Change

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Intek Single Cylinder engines use multiple head gasket variations. Use your engine model to find the exact match. Our head gasket kits include everything needed to complete the repair

Carburetor Needle & Seat Failure

Possible Cause

Carburetor Needle & Seat Failure

A worn or stuck carburetor needle and seat can allow fuel to continuously flow into the engine, leading to flooding, fuel in the oil, or even hydrolock.

What to check

Strong smell of gasoline from the engine or oil
Engine is hard to turn over or completely locked (possible hydrolock)
Oil level appears overfilled or thinned out with fuel
Fuel leaking from carburetor or air filter area
Spark plug is wet with fuel when removed
Excessive fuel may be present inside the cylinder
Engine may produce white or black smoke during or after starting

When this happens

Occurs when debris, varnish, or wear prevents the needle from sealing
More likely after sitting with old fuel in the system

Recommended Parts

Common repair parts for this issue

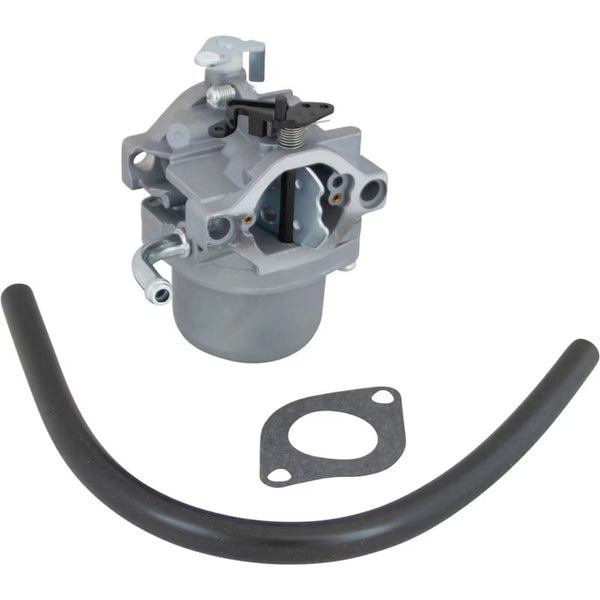

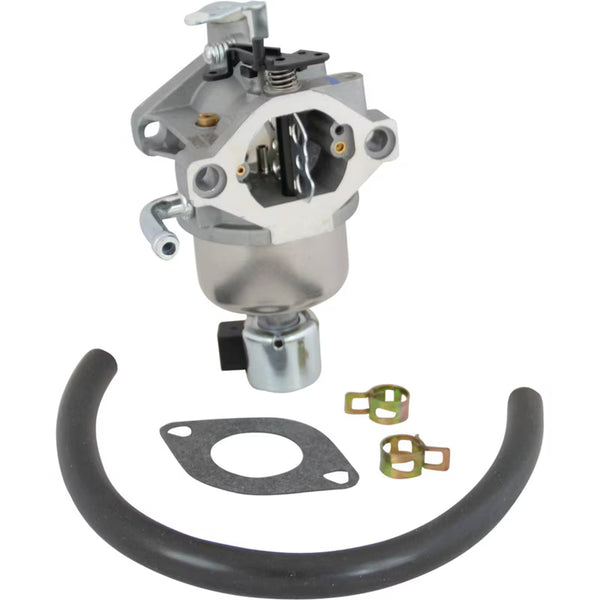

Carburetor
Oil Change

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Fuel leaking into the engine can dilute the oil and cause severe engine damage if not addressed. Do not run the engine if oil smells like gasoline or appears overfilled. After repairing, always change the engine oil before running.

Fuel Pump Diaphragm Failure

Possible Cause

Fuel Pump Diaphragm Failure

A failed fuel pump diaphragm can allow fuel to leak directly into the engine crankcase, contaminating the oil with gasoline. This can lead to strong fuel smell, rising oil levels, and potential engine damage if not corrected.

What to check

Strong smell of gasoline coming from the oil
Oil level appears overfilled or thinner than normal
Engine oil may feel watery or diluted
Engine may run rough
Engine may produce white smoke
Fuel pump shows signs of leaking or internal failure
No signs of carburetor flooding (helps rule out needle & seat issue)

When this happens

Occurs when the internal diaphragm wears out, cracks, or ruptures
More likely with age or prolonged sitting

Recommended Parts

Common repair parts for this issue

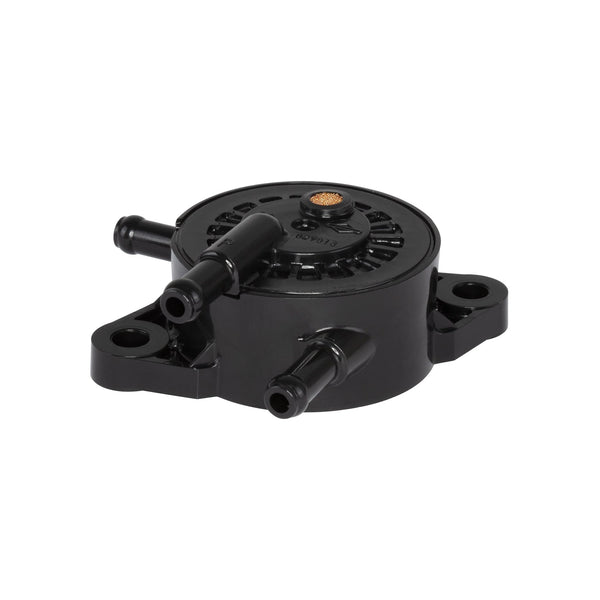

Fuel Pump
Change Engine Oil

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Fuel-contaminated oil can cause severe engine damage if the engine is operated. Do not run the engine until the issue is repaired and the oil has been changed. After replacement, always drain and refill with fresh oil before starting the engine.

Common Areas for Oil Leaks

Valve Cover Gasket Leak

Possible Cause

Valve Cover Gasket Leak

A worn, brittle, or improperly sealed valve cover gasket can allow oil to leak from the top of the engine. This is one of the most common and easiest oil leaks to identify and fix.

What to check

Oil visible around the valve cover area
Oil dripping down the side of the engine
Burning oil smell (oil contacting hot engine muffler)
Debris buildup stuck to oily areas near the valve cover

When this happens

Common on overhead valve (OHV) engines
More likely as the gasket ages, hardens, or shrinks
Can occur after valve adjustments if gasket is reused or misaligned
Frequent on engines with high run time or heat cycles

Recommended Parts

Common repair parts for this issue

Valve Cover Gasket
Top off oil as needed

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Running an engine with low oil due to leaks can cause severe engine damage. Always check and maintain proper oil levels before operating.

Crankshaft Seal Leak

Possible Cause

Crankshaft Seal Leak

A worn or damaged crankshaft seal can allow oil to leak from the lower part of the engine, typically around the crankshaft where it exits the engine block. These leaks often appear underneath the engine, near the pulley area, or on the ground.

What to check

Oil leaking from the bottom of the engine
Oil buildup around the crankshaft or PTO shaft area
Oil dripping onto the deck or ground beneath the engine
Oil present behind or around the engine pulley
Top of engine appears dry (no valve cover leak)

When this happens

More common on engines with higher hours or wear
Can occur if debris damages the seal lip
May happen after prolonged storage or dry seal conditions
Sometimes follows overheating or excessive crankcase pressure from blown head gasket

Recommended Parts

Common repair parts for this issue

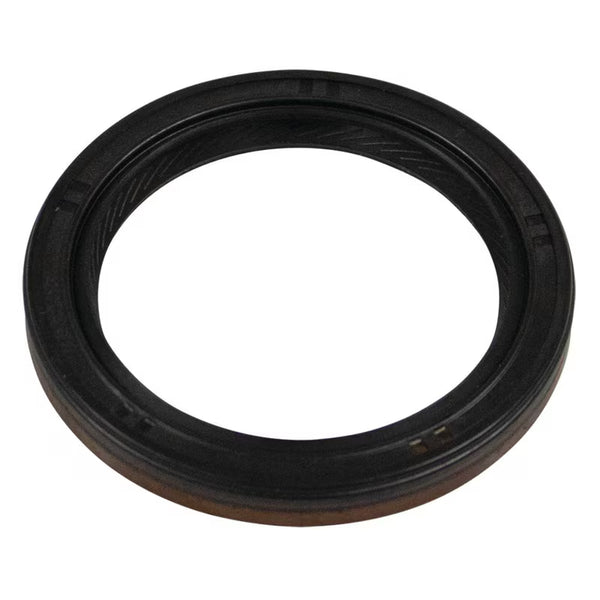

Crankshaft Oil Seal
Oil Change

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Operating the engine with an active oil leak can lead to low oil levels and severe engine damage. Repair leaks promptly and verify oil level before use.

Smells Like Gas / Oil Level Rising

Carburetor Needle & Seat Failure

Possible Cause

Carburetor Needle & Seat Failure

A worn or stuck carburetor needle and seat can allow fuel to continuously flow into the engine, leading to flooding, fuel in the oil, or even hydrolock.

What to check

When this happens

Occurs when debris, varnish, or wear prevents the needle from sealing
More likely after sitting with old fuel in the system

Recommended Parts

Common repair parts for this issue

Carburetor
Oil Change

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Fuel Pump Diaphragm Failure

Possible Cause

Fuel Pump Diaphragm Failure

What to check

When this happens

Occurs when the internal diaphragm wears out, cracks, or ruptures
More likely with age or prolonged sitting

Recommended Parts

Common repair parts for this issue

Fuel Pump
Change Engine Oil

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Clicking sound / Engine Won't Crank Over

Starter Solenoid Failure

Possible Cause

Starter Solenoid Failure

A faulty starter solenoid can prevent power from reaching the starter motor, resulting in a no-crank or clicking condition when turning the key. This is a common electrical issue on riding mowers and small engine equipment.

What to check

Turning the key produces a clicking sound but engine does not crank
No response from starter when key is turned
Battery is fully charged and tests good
Starter motor tests good when bypassed or bench tested
Intermittent starting issues (sometimes cranks, sometimes does not)
Voltage present at solenoid but not passing through to starter

When this happens

Occurs over time due to electrical wear, corrosion, or internal contact failure
More likely on older equipment or units exposed to moisture and vibration
May fail gradually (intermittent clicking) or suddenly (no response at all)

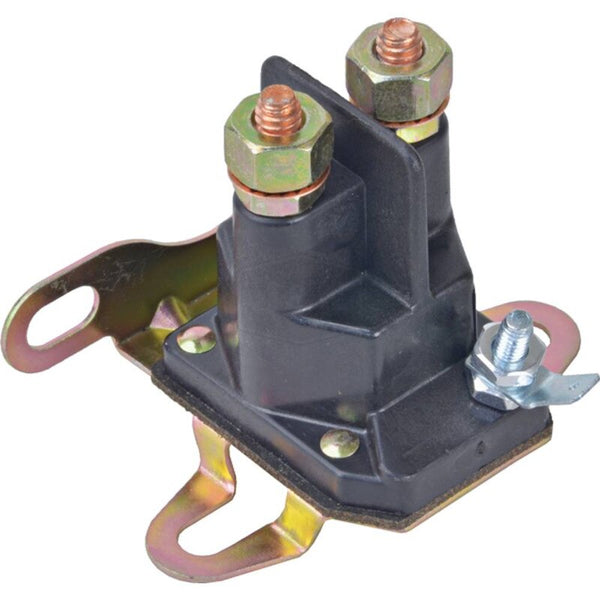

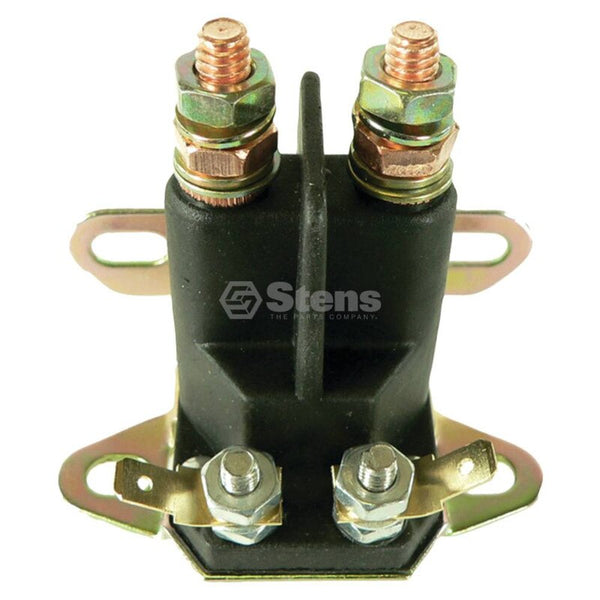

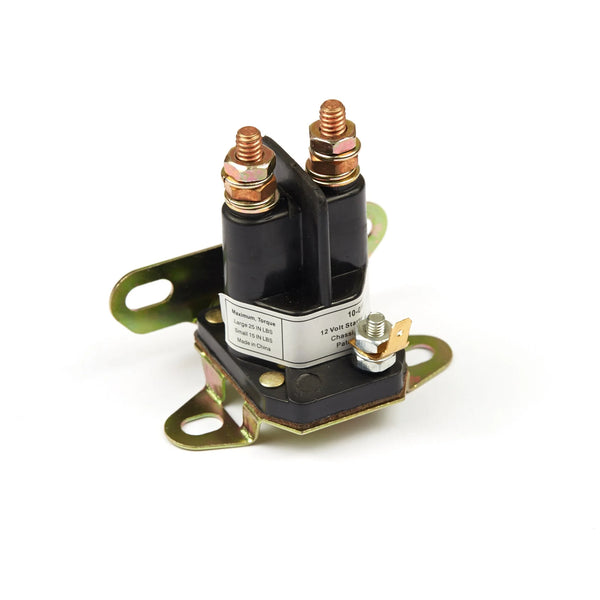

Starter solenoids are available in 3-pole and 4-pole configurations. Your mower’s wiring determines which type is required. Your machine will either have a 3-pole or 4-pole starter solenoid, and these two types are NOT interchangeable.

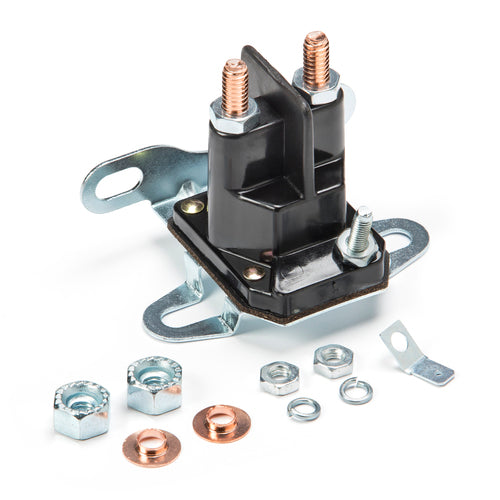

3-pole solenoid uses one small terminal for the ignition/start signal and grounds through the frame of the machine.

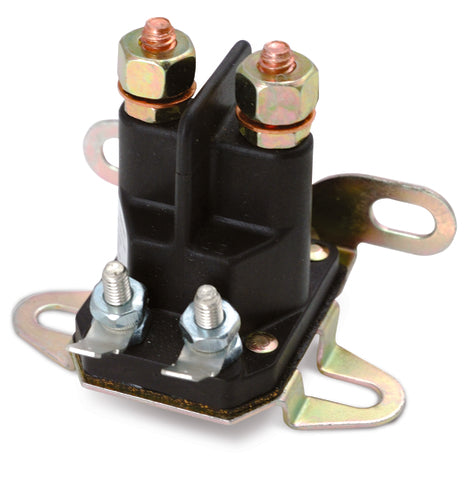

4-pole solenoid Uses two small terminals — one for the ignition/start signal and one for a dedicated ground.

Recommended Parts

Common repair parts for this issue

Starter Solenoid - Always verify the correct solenoid type for your machine before installing.

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Starter solenoid issues are often mistaken for a bad battery or starter motor. Always confirm the battery is fully charged and connections are clean before replacing components. Installing the wrong type of solenoid can result in: -No crank / no start condition -Constant cranking or electrical issues -Potential damage to the wiring system

Battery Not Charging / Mower Not Able Restart After Shutting Off / PTO Shuts Off

Bad Voltage Regulator

Possible Cause

Bad Voltage Regulator

A failing voltage regulator can cause a range of electrical issues, from weak starting to battery damage. It controls the charging system output, ensuring your battery receives the correct voltage. A bad voltage regulator may cause no start condition, no restart after running, and PTO disengages while mowing.

What to check

Check battery voltage with engine running (should be ~13.5–14.5V)
Inspect wiring for loose, corroded, or damaged connections
Verify regulator ground is clean and secure
Look for melted connectors or burnt wiring
Test battery condition (rule out a bad battery)

When this happens

After the engine has been running for a while (battery drains instead of charging)
When electrical load increases (PTO engaged, headlights on)

Important Note – Regulator Types:
Some engines use either a low amperage or high amperage voltage regulator, and they are not interchangeable.

Low amp systems are typically used on basic setups with minimal electrical load
High amp systems are used when running additional components like electric PTOs, lights, or charging larger batteries

Recommended Parts

Common repair parts for this issue

Voltage Regulator ⚠️ You may need to visually compare your current regulator to product photos or check your engine’s specifications to confirm the correct type before ordering.

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Running with a bad voltage regulator can damage your battery, wiring, and other electrical components. Overcharging can cause the battery to swell or leak, while undercharging can leave you unable to restart the engine.

Disclaimer: The information provided is for general troubleshooting purposes only. Small Engines RX is not responsible for misdiagnosis, incorrect repairs, or any damage resulting from use of this information. Proper diagnosis is the responsibility of the customer.

Find by Engine Model or Part Number

Don’t know your engine model? Learn how to find it

Compatible Parts for all Briggs & Stratton Intek Single-Cylinders

These parts are associated with this engine family, but fitment can vary by exact model and spec number. Please confirm your exact model number before ordering.
