Stens 435-275

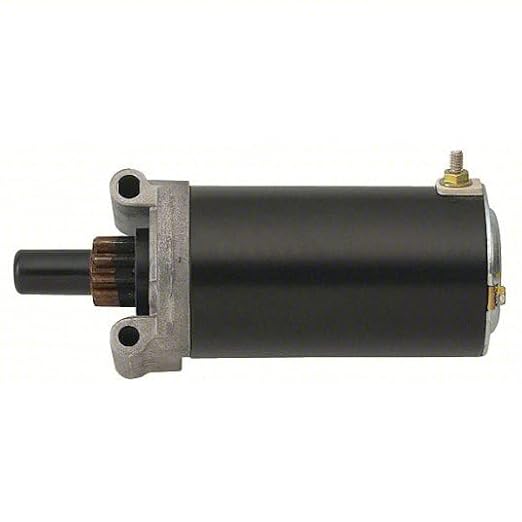

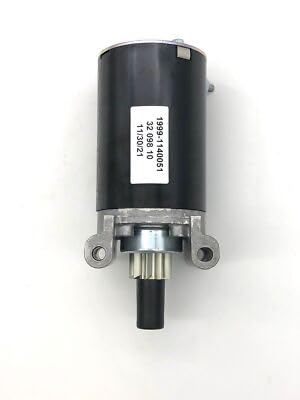

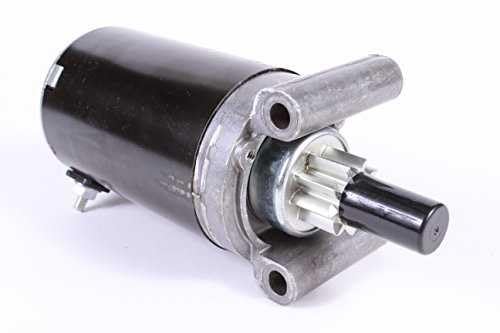

Stens 435-275 Mega-Fire Electric Starter

Get your engine turning over with the Stens 435-275 Mega-Fire electric starter. This aftermarket replacement fits compatible twin-cylinder Kohler Courage, 7000 Series, and Confidant engines.

A starter may be the problem if the engine cranks slowly after the battery, connections, and valve adjustment (where applicable) have been checked. A whining sound while the starter spins without turning the engine can also point to a damaged starter drive, or Bendix, that is not engaging.

Fits select Kohler engines:

• Courage V-Twin SV710–SV740

• Courage PRO V-Twin SV810–SV840

• 7000 Series KT715–KT745

• Confidant ZT710–ZT740

Common cross-reference numbers: Kohler 32 098 01-S, 32 098 03-S, 32 098 04-S, 32 098 08-S, and 32 098 10-S; Bad Boy 015-0155-00; Kubota 77700-11716, E7173-00280, and E7176-00280; Lester 5801.

What’s included: (1) Stens 435-275 electric starter

Specs

• Length: 8"

• Housing length between end caps: 4 1/4"

• Mounting-hole spacing, center to center: 2 5/8"

• Starter drive: 10 teeth

• Appearance may vary from the original starter

Striking or disassembling the starter voids the Stens warranty. Check your full engine model and original starter part number before ordering.
