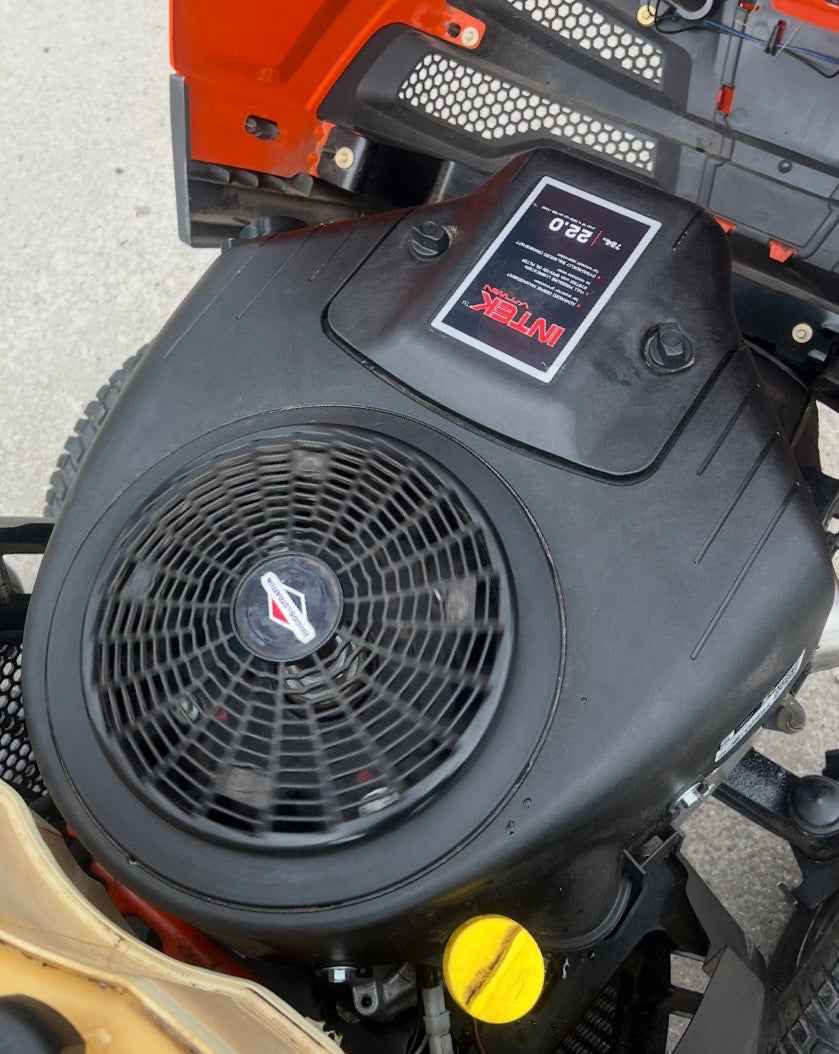

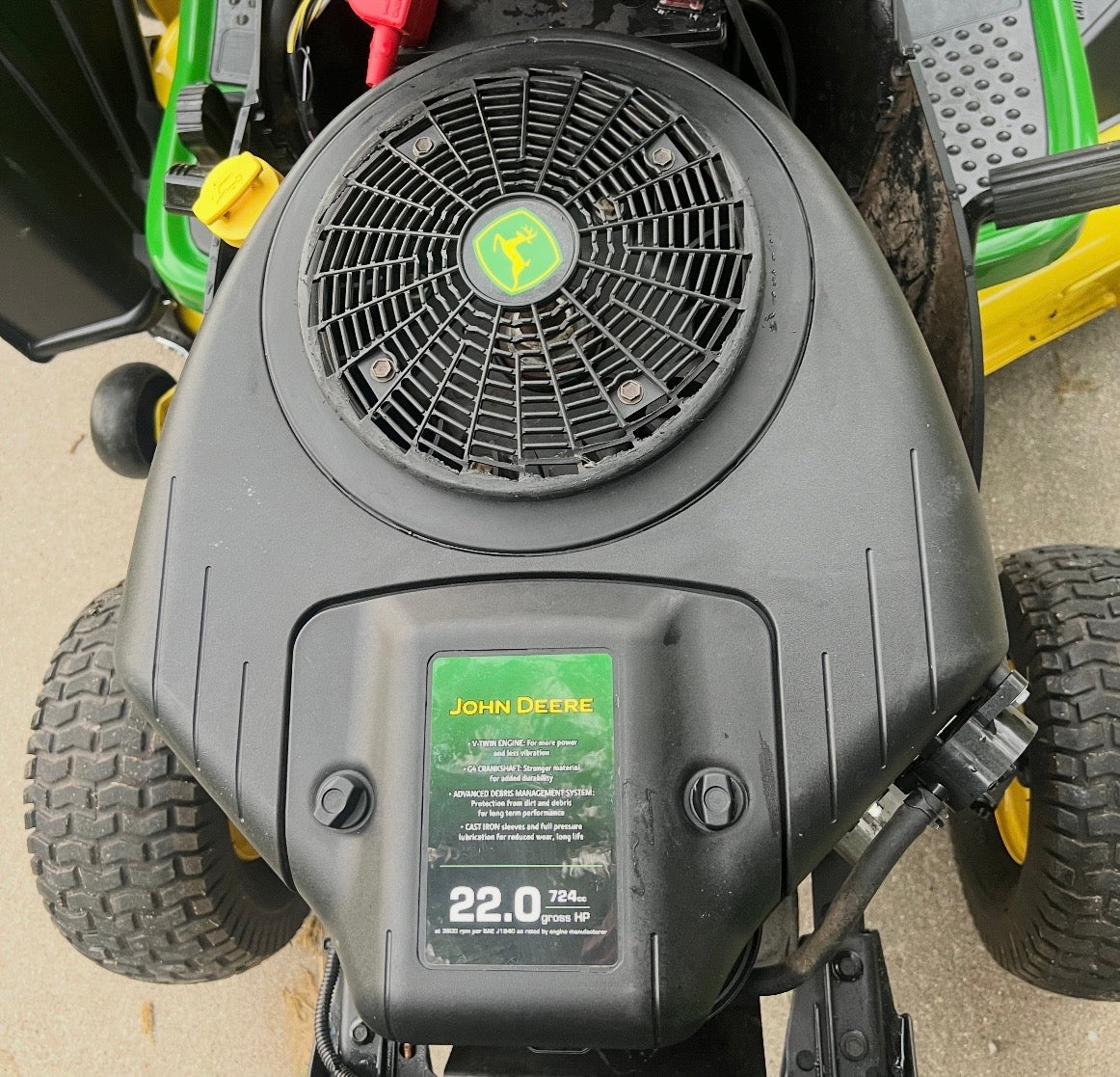

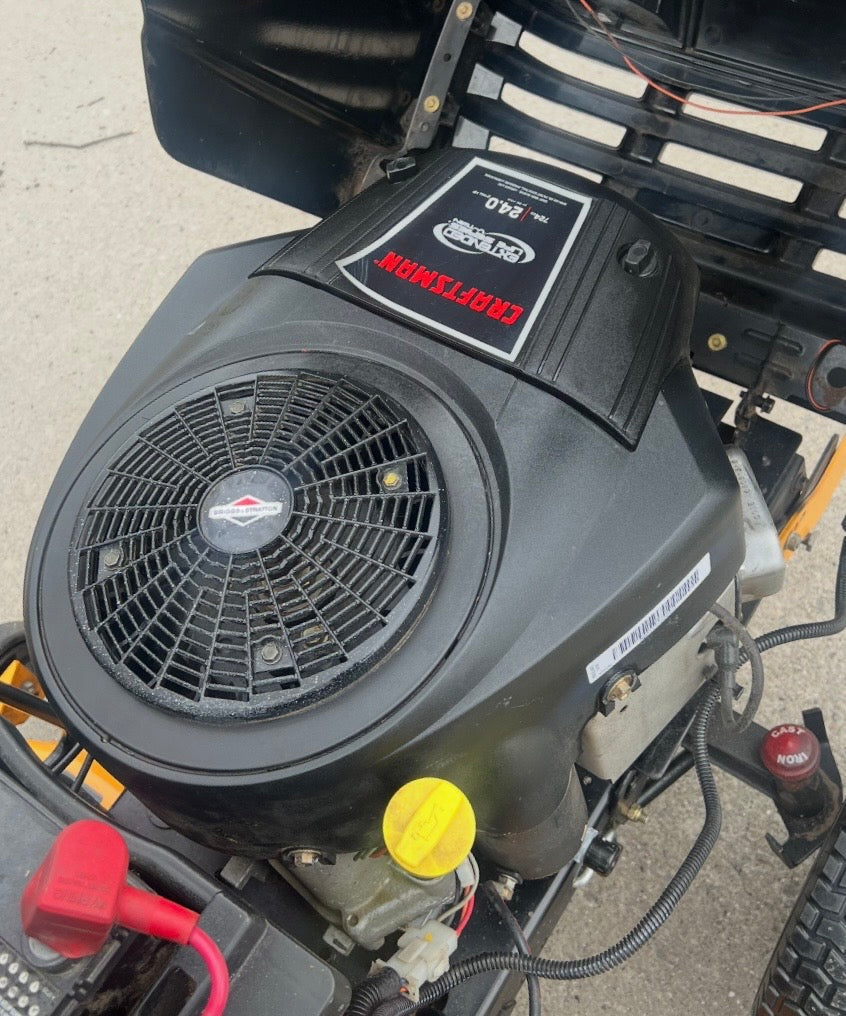

Intek V-Twin Engine Family

Use this page to identify common problems, review likely causes, and find the right replacement parts for this engine family.

View All Models →

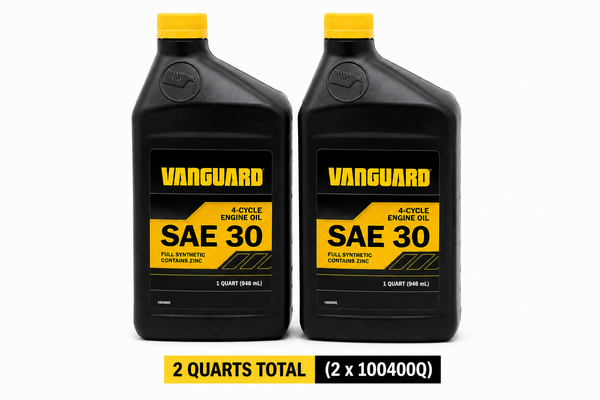

Oil change	Change every 50 hours or Annually - 64 oz (2 quarts)
Air filter	Clean every 25 Hours and Change Every 100 hours or Annually
Spark plug	Replace Every 100 hours or Annually
Fuel filter	Replace Every 100 hours or Annually

Cranks But Won't Start

Cracked Fuel Pump Vacuum Hose

Possible Cause

Cracked Fuel Pump Vacuum Hose

On Briggs & Stratton Intek V-Twin engines, the fuel pump relies on a vacuum pulse from the engine to operate. If the vacuum hose is cracked, leaking, or disconnected, the pump cannot deliver fuel properly, leading to starvation and poor engine performance.

What to check

Engine cranks but struggles to start or won’t start
Engine starts then dies shortly after
Runs poorly or stalls under load
Inspect vacuum hose from engine to fuel pump for cracks, brittleness, or loose fit
Check for fuel pump not pulsing fuel (disconnect outlet line and observe flow while cranking)

When this happens

Over time as rubber hose becomes brittle and cracks
After exposure to heat and engine vibration
More common on older or high-hour engines

There are multiple fuel pump variations (commonly 3 styles) that can fit the same engine model, with differences in port orientation and mounting.

Always compare your existing fuel pump to product photos before ordering to ensure correct fitment.

Recommended Parts

Common repair parts for this issue

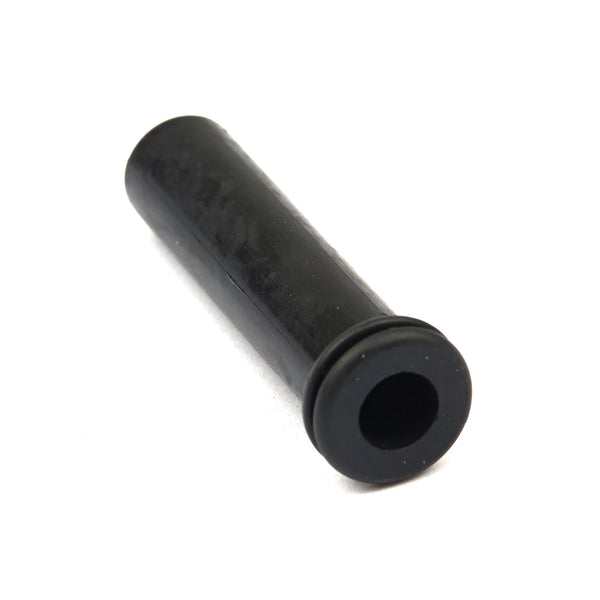

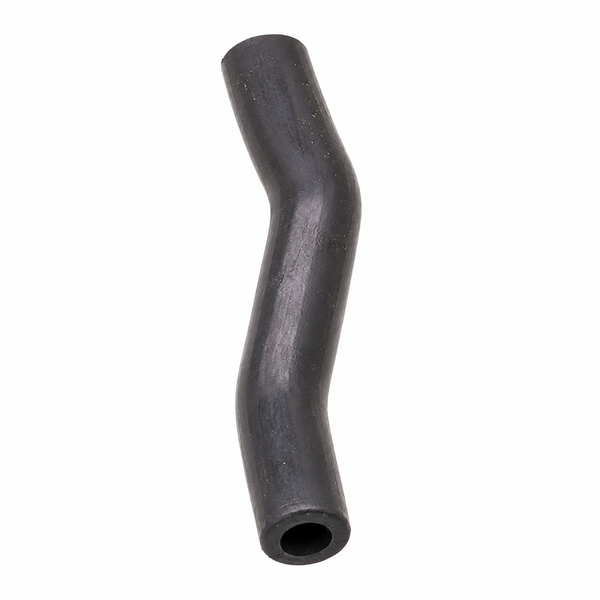

Vacuum Hose for Fuel Pump

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: A vacuum leak in the fuel pump hose will prevent proper fuel delivery and can mimic carburetor or fuel pump failure. Always inspect the hose before replacing other components.

Clogged Carburetor

Possible Cause

Clogged Carburetor

A clogged carburetor restricts proper fuel flow and air/fuel mixing, leading to symptoms such as no start, hard starting, surging, rough running, or only running with choke or starting fluid.

What to check

Engine cranks but will not start
Engine starts with choke but dies when choke is removed
Surging, rough running, or hesitation
Engine only runs with starting fluid
Remove carburetor bowl and inspect for debris, varnish, or gel-like fuel residue

When this happens

After fuel sits in the engine for extended periods (off-season storage)
When using old or untreated gasoline
After storage without draining the carburetor

Tip:
Installing a fuel shutoff valve allows you to turn off the fuel supply and let the engine run until it uses up the remaining fuel in the carburetor. This helps prevent fuel from sitting inside and forming deposits that can clog the carburetor during storage.

Recommended Parts

Common repair parts for this issue

Attempt to Clean carburetor thoroughly (jets, passages, and bowl)

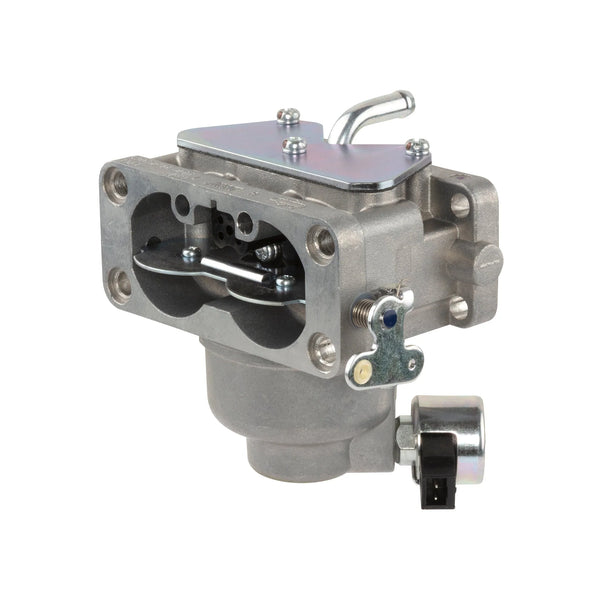

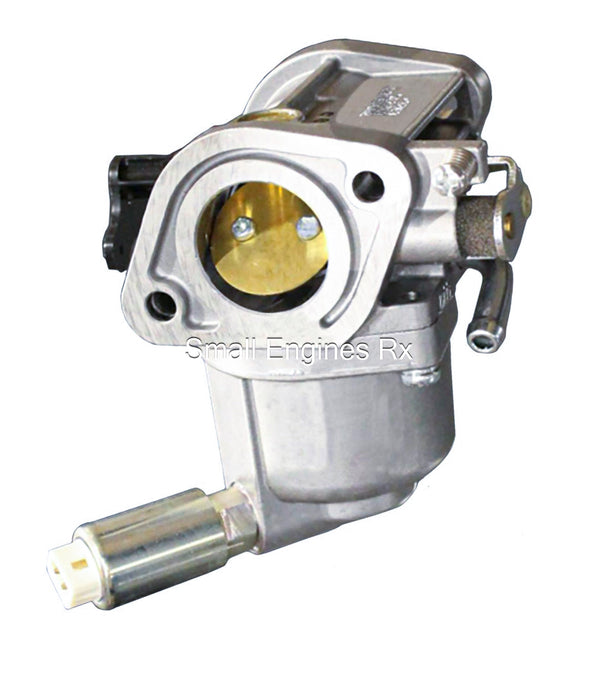

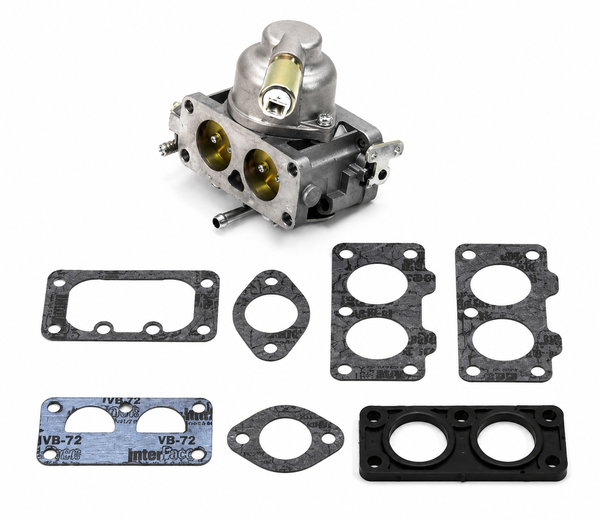

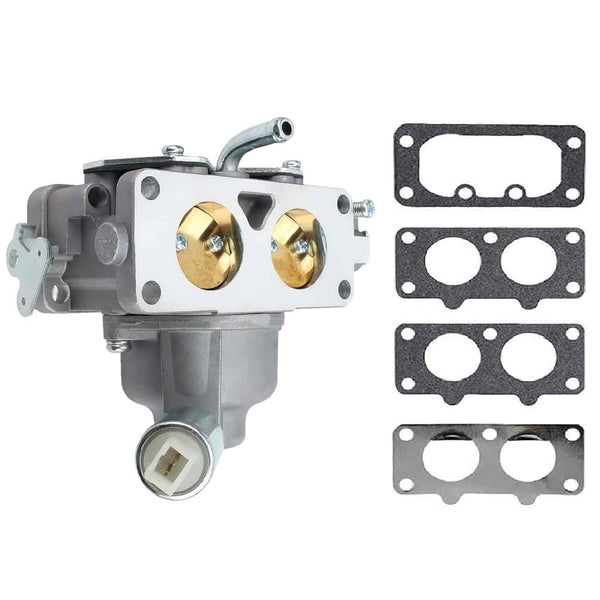

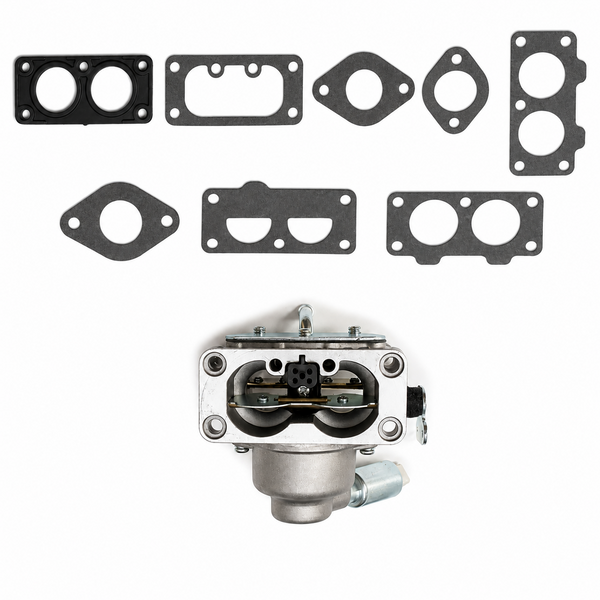

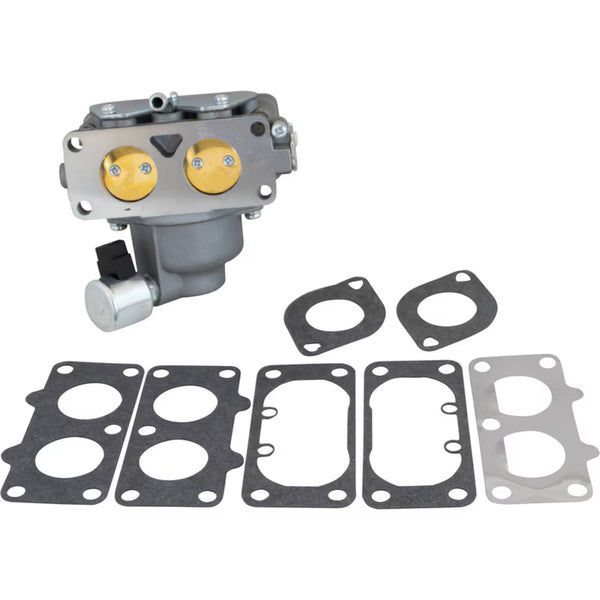

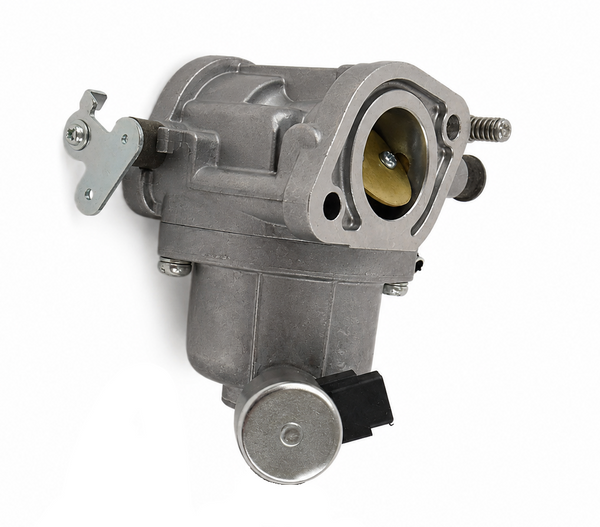

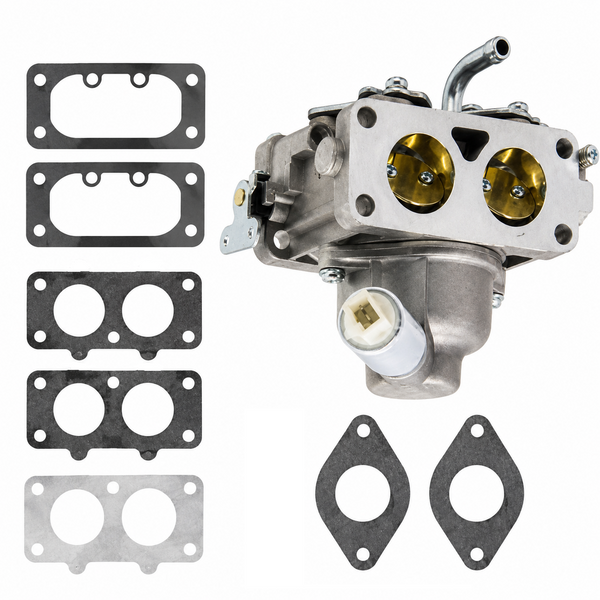

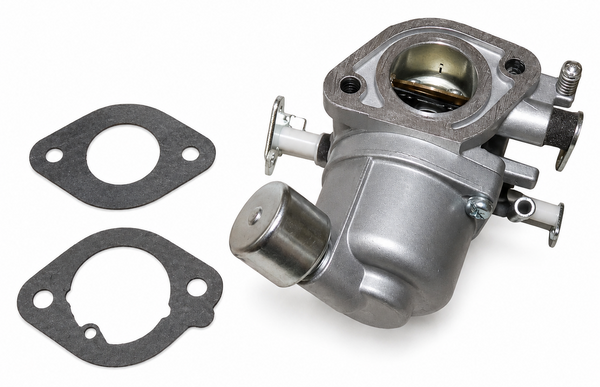

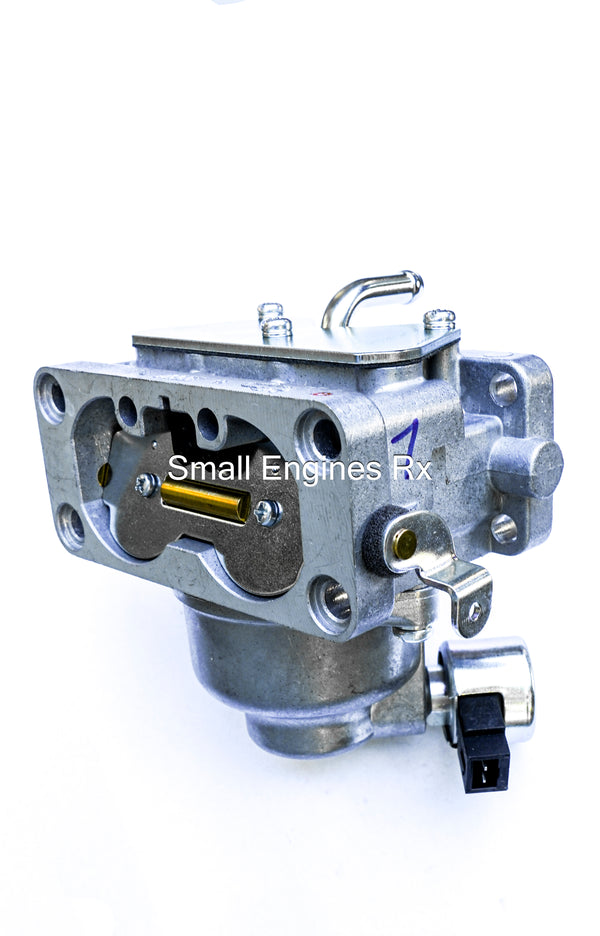

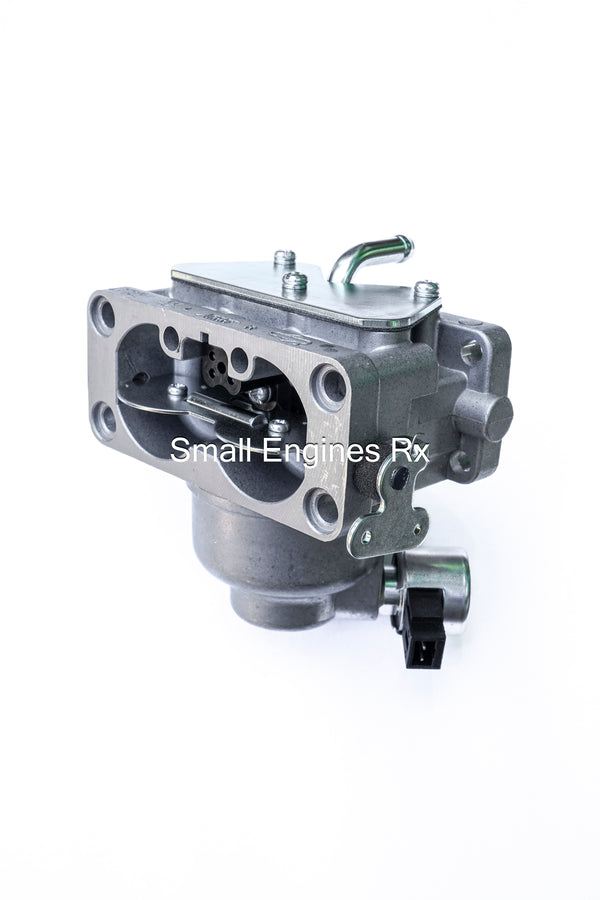

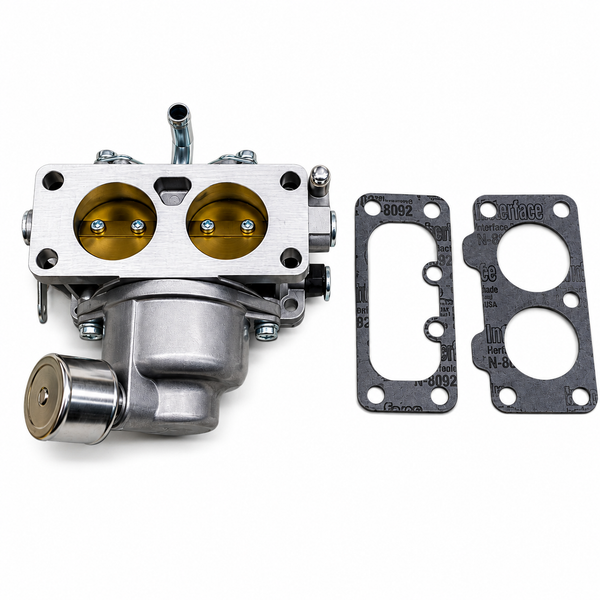

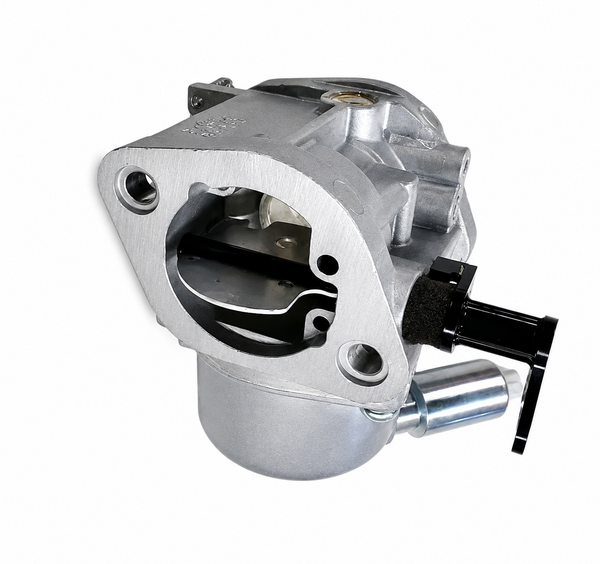

Replacement carburetor (if heavily clogged or damaged)
Fuel filter (replace to prevent recontamination)

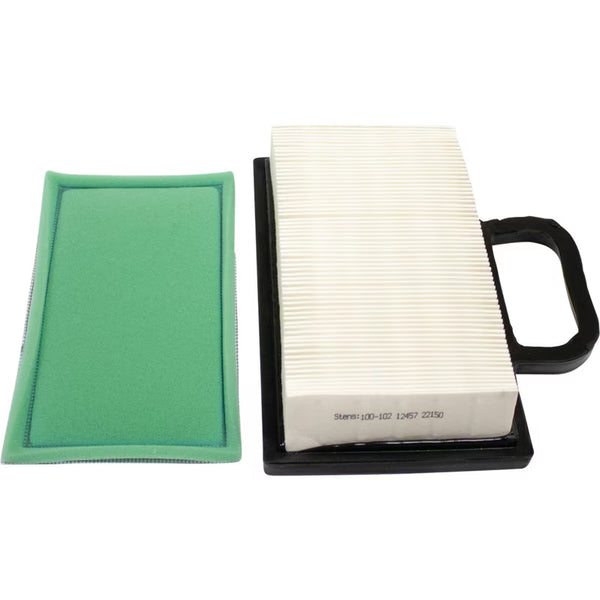

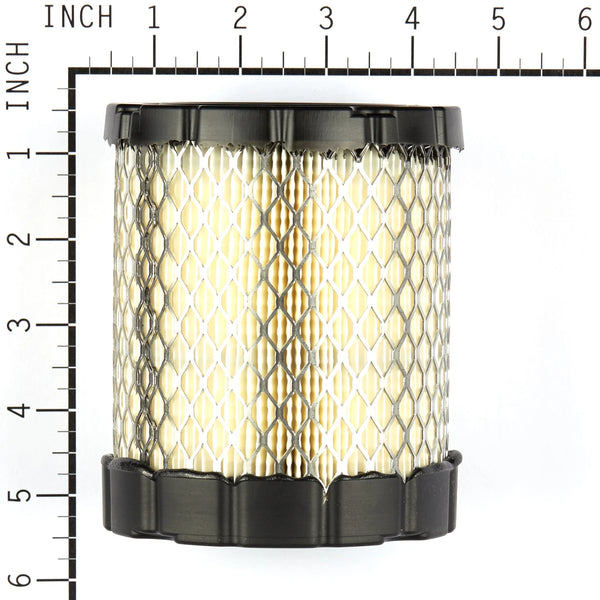

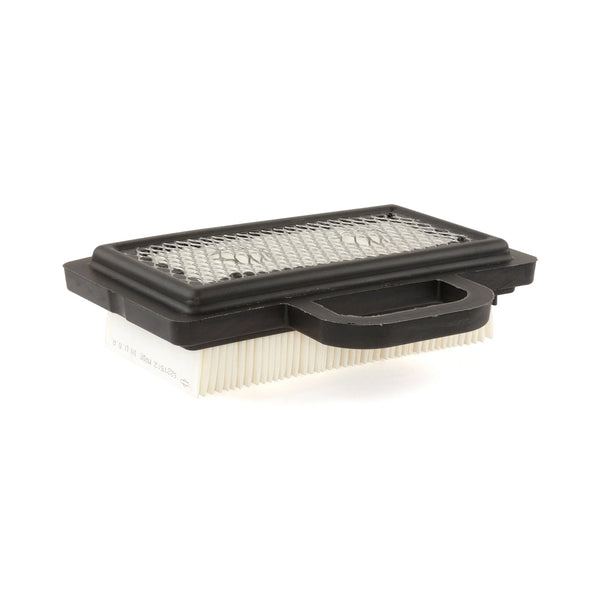

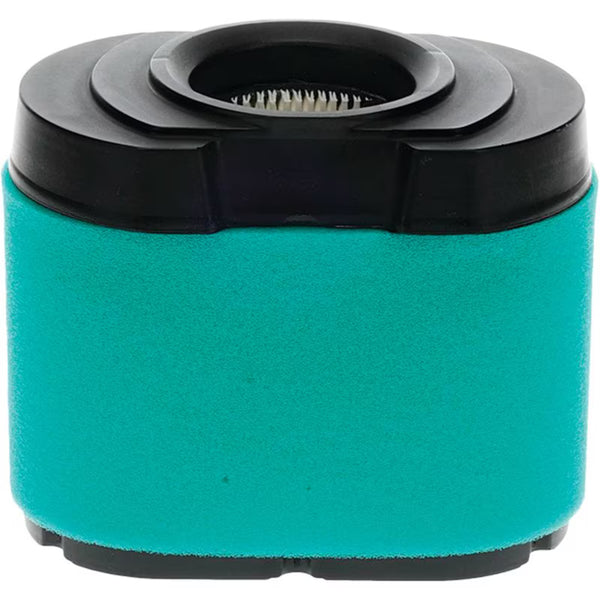

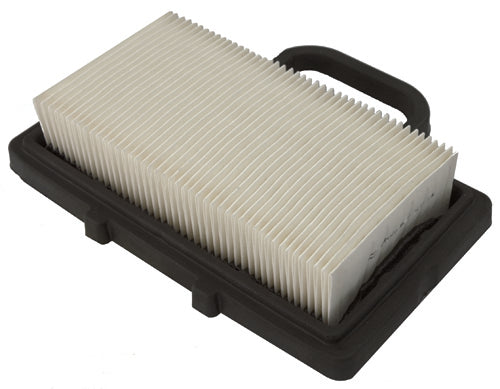

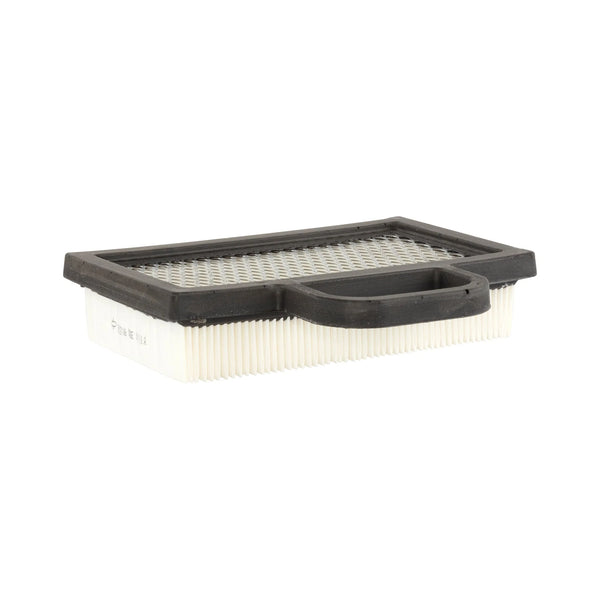

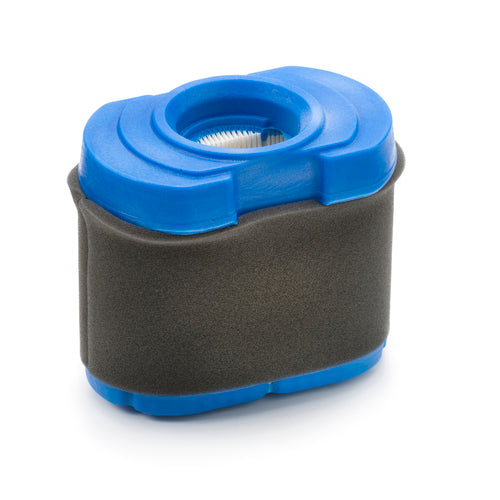

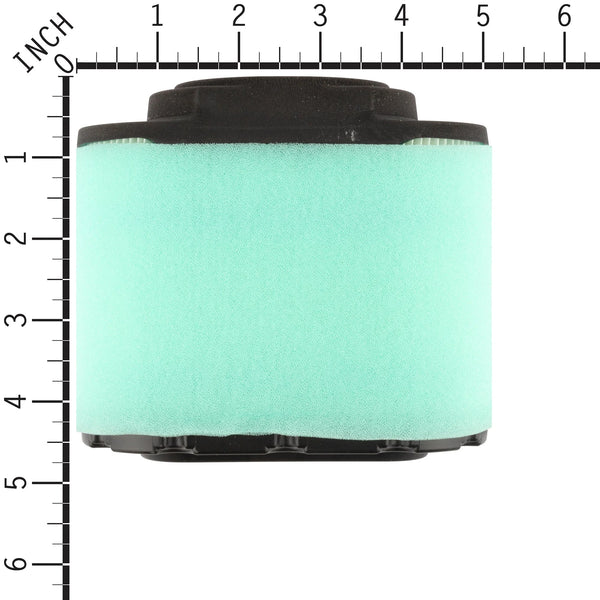

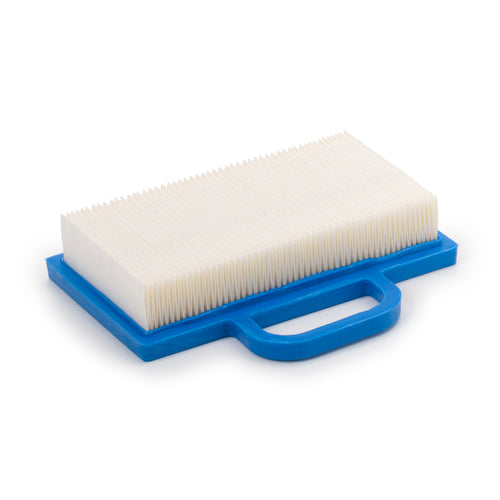

Air Filter
Fuel Shut Off Valve

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Old fuel left in the carburetor can form deposits that clog jets and passages. Running contaminated fuel can also damage other fuel system components.

Surging / Popping Through Intake / Rough Idle

Bad Intake Manifold

Possible Cause

Bad Intake Manifold

On Briggs & Stratton Intek V-Twin engines, the intake manifold is prone to warping at both the cylinder head sealing surfaces and where it mounts to the carburetor. This allows unmetered air into the engine, causing a lean condition and poor performance.

What to check

Inspect manifold sealing surfaces at both cylinder heads and the carburetor flange
Look for visible warping, gaps, or uneven mounting
Spray carb cleaner around the manifold while running (RPM change indicates a leak)
Check mounting bolts for looseness or uneven torque
Inspect gaskets for flattening, cracking, or deterioration

When this happens

Surging at idle or under light load
Popping or backfiring through the intake
Rough, unstable idle
Common on aging Intek V-Twin engines with plastic manifolds

Recommended Parts

Common repair parts for this issue

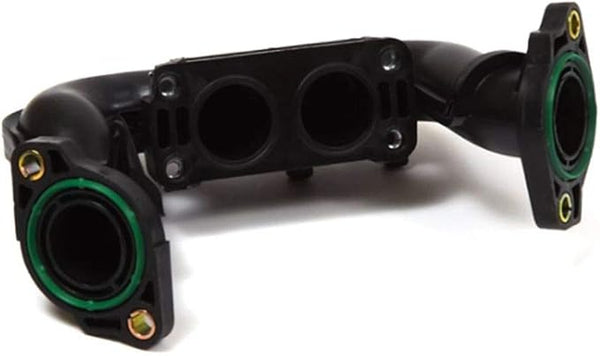

Updated Plastic Intake Manifold (Green O-rings): Improved design over earlier version

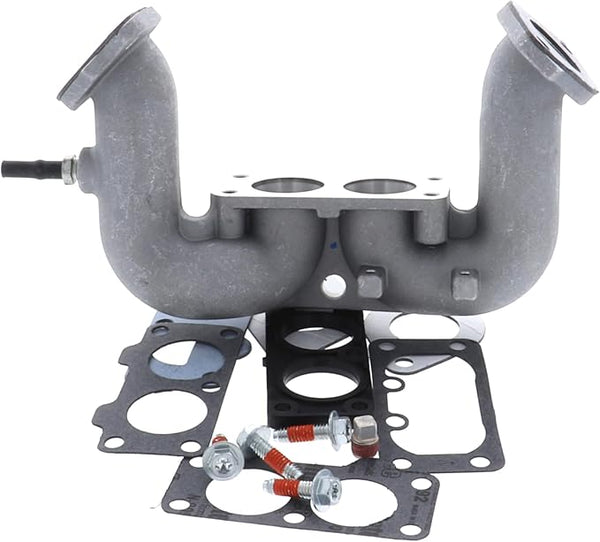

Or Metal Intake Manifold Upgrade: More durable and eliminates warping concern

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Running with a leaking intake manifold will cause a lean condition, which can lead to overheating, poor performance, and possible engine damage if not corrected.

Runs Poorly / Misfiring

Exhaust Valve Guide Failure / Bent Push Rod

Possible Cause

Exhaust Valve Guide Failure / Bent Push Rod

On Briggs & Stratton Intek V-Twin engines, the exhaust valve guide can slide upward due to heat, causing the valve to stick or bind. This often results in a bent exhaust push rod and loss of proper valve operation.

What to check

Remove valve cover and inspect push rods (look for a bent exhaust push rod)
Check if the exhaust valve is stuck or not returning properly
Inspect valve guide position (may appear raised or out of place)
Engine may crank unevenly or feel like it has low compression on one cylinder
Verify valve movement while rotating engine by hand

When this happens

After engine gets hot or during extended run time
Sudden loss of power while mowing
Engine starts running rough or begins misfiring
No-start condition or hard cranking after failure
Common on higher-hour Intek V-Twin engines
More likely when the engine is dirty or packed with grass/debris, restricting airflow and causing overheating

Recommended Parts

Common repair parts for this issue

Cylinder Head Kit (our kit include a new exhaust push rod)

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Dirty engines with grass, oil, and debris buildup around the cooling fins and shrouds can trap heat and lead to overheating. This increases the risk of the valve guide moving and causing internal damage. Continuing to run the engine in this condition can result in further valvetrain or engine failure.

Ignition Coil Failure

Possible Cause

Ignition Coil Failure

On Briggs & Stratton Intek V-Twin engines, a failed ignition coil will prevent one cylinder from producing spark, often causing a misfire, rough running condition, or loss of power. In some cases, both coils may fail, resulting in a no-start condition. Coils can also fail when hot, causing the engine to misfire after warming up and stop misfiring once cooled.

What to check

Engine runs rough or misfires (one cylinder not firing)
Check spark on both cylinders individually
No spark present on one cylinder (single coil failure) or both (rare)
Spark is weak or inconsistent when testing
Confirm spark kill wire is not shorted to ground (disconnect and retest for spark)

When this happens

Common on engines over time due to heat
May fail suddenly or become intermittent before complete failure
Heat-related failure is common — coil stops working when hot and works again once cooled
Often shows as a random or consistent misfire under load
More likely on higher-hour engines or those exposed to moisture

Recommended Parts

Common repair parts for this issue

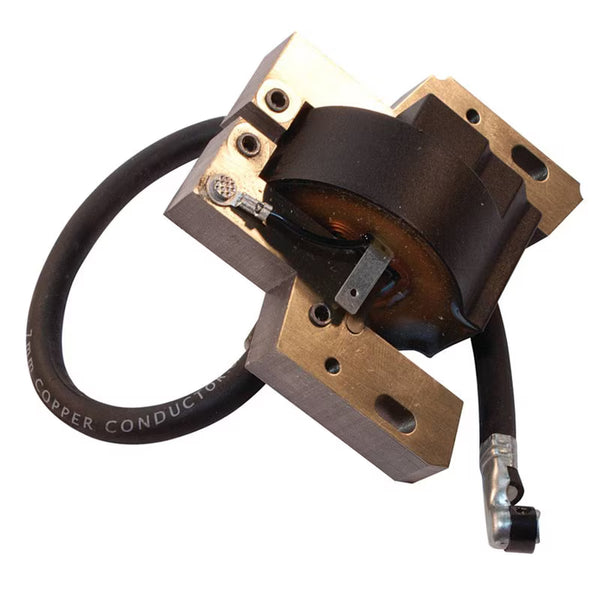

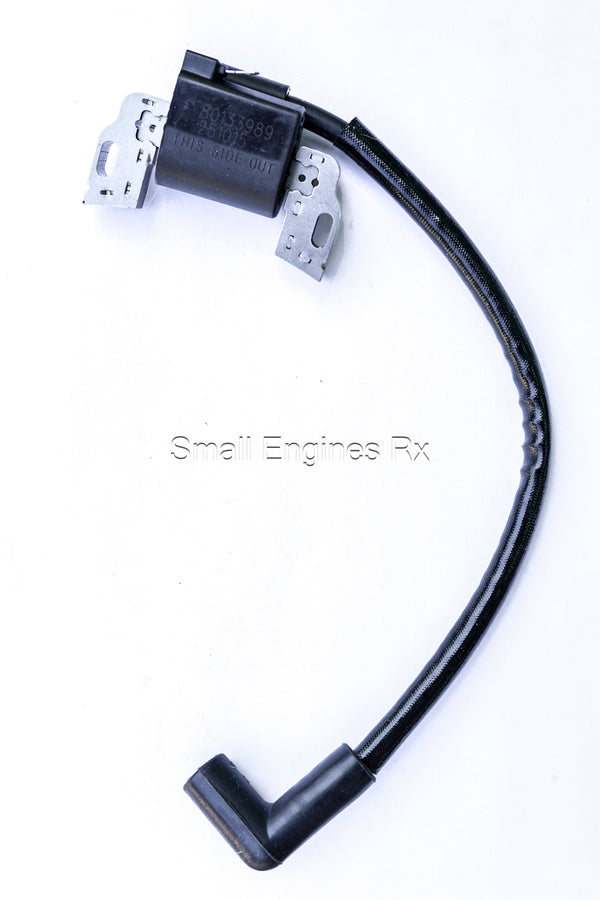

Ignition Coil, consider replacing both if high hours.

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Ignition coil failure is often mistaken for fuel or carburetor issues. On V-Twin engines, a single failed coil will still allow the engine to run—but poorly. Ensure proper air gap is set during installation for correct operation.

Hard to Start

Valves Out of Adjustment

Possible Cause

Valves Out of Adjustment

Improper valve clearance can cause hard starting, poor compression release function, and overall engine performance issues. Valves that are too loose can prevent the engine from cranking smoothly.

What to check

Engine is hard to turn over
Starter struggles or seems get stuck on compression stroke
Engine may kick back during starting
Compression release appears not to function properly
Battery and starter test good

When this happens

Common on single-cylinder overhead valve engines
Often occurs as engine hours increase and valve clearances drift out of spec
May happen after long periods without maintenance

Recommended Parts

Common repair parts for this issue

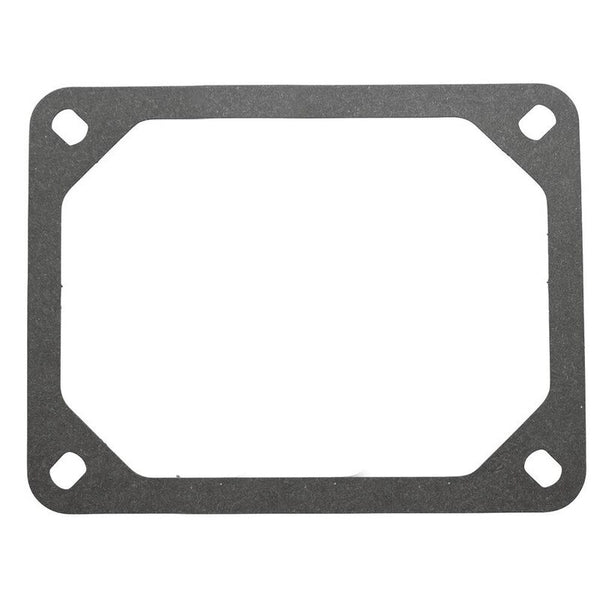

Valve Cover Gasket

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Incorrect valve adjustment can cause engine damage. Always follow manufacturer specifications for valve clearance. If unsure, consult a repair manual or professional.

Carburetor Needle & Seat Failure

Possible Cause

Carburetor Needle & Seat Failure

A worn or stuck carburetor needle and seat can allow fuel to continuously flow into the engine, leading to flooding, fuel in the oil, or even hydrolock.

What to check

Strong smell of gasoline from the engine or oil
Engine is hard to turn over or completely locked (possible hydrolock)
Oil level appears overfilled or thinned out with fuel
Fuel leaking from carburetor or air filter area
Spark plug is wet with fuel when removed
Excessive fuel may be present inside the cylinder
Engine may produce white or black smoke during or after starting

When this happens

Occurs when debris, varnish, or wear prevents the needle from sealing
More likely after sitting with old fuel in the system

Recommended Parts

Common repair parts for this issue

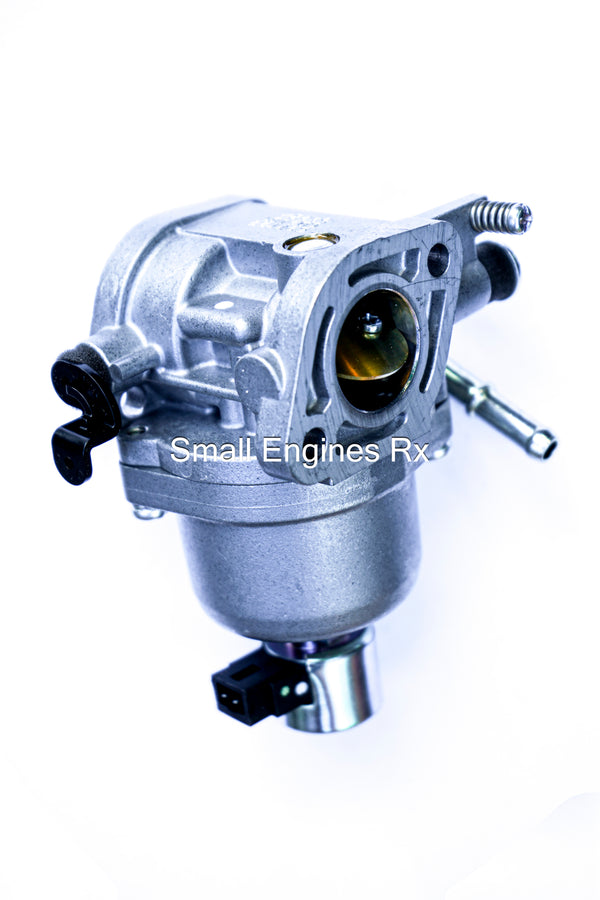

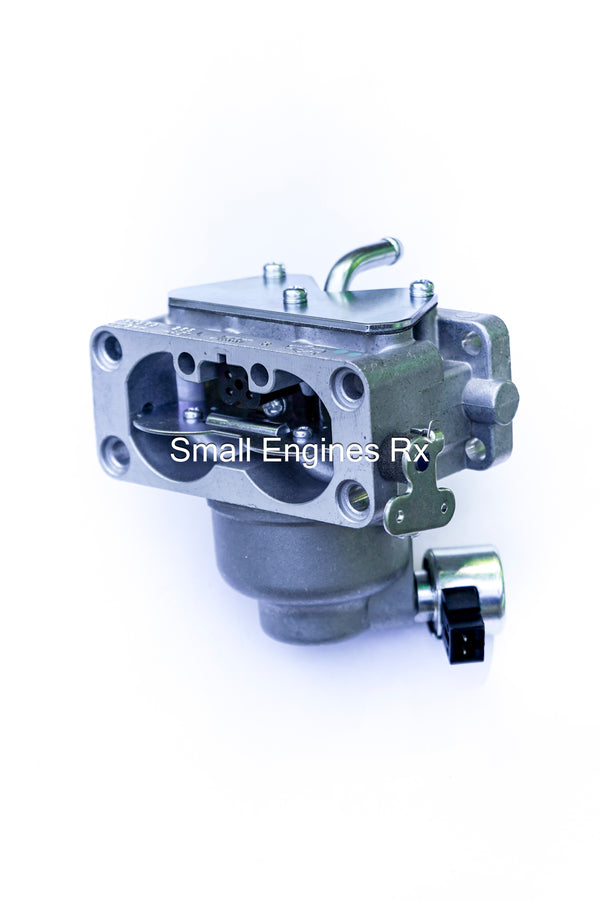

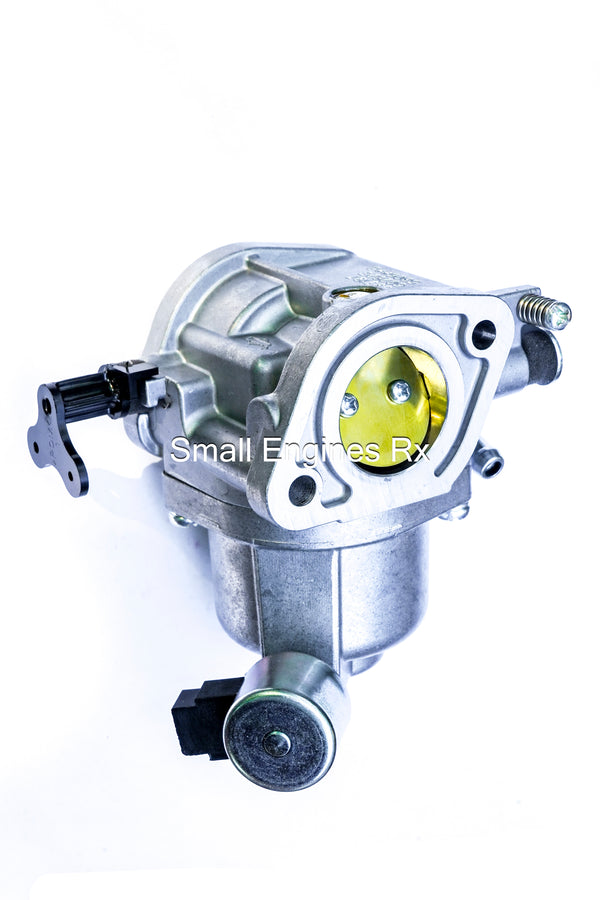

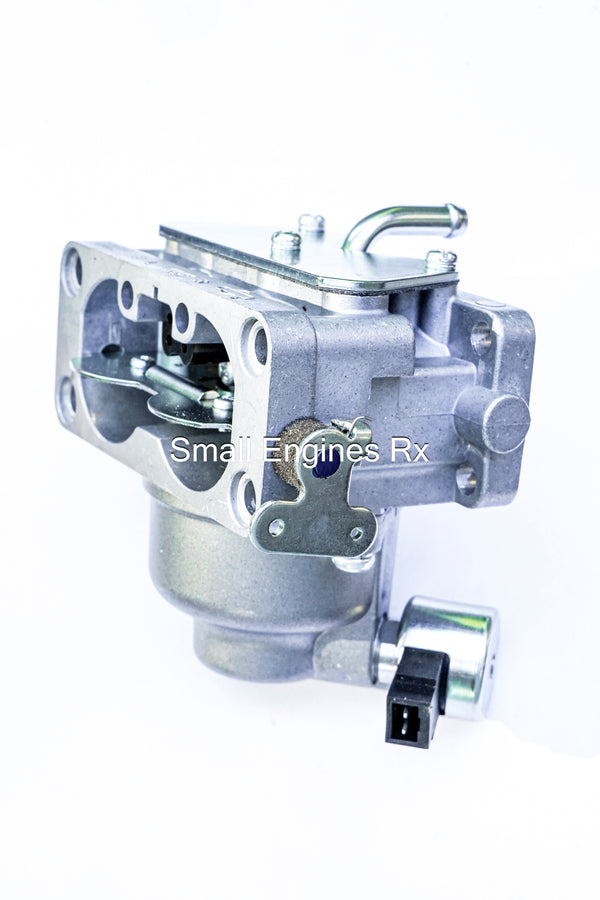

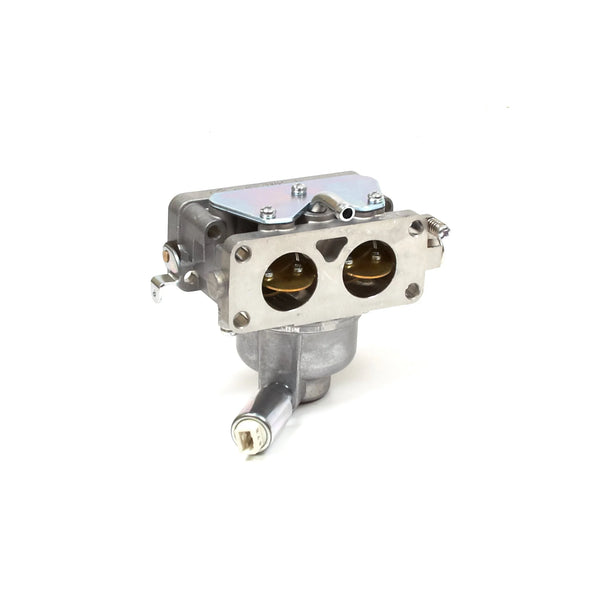

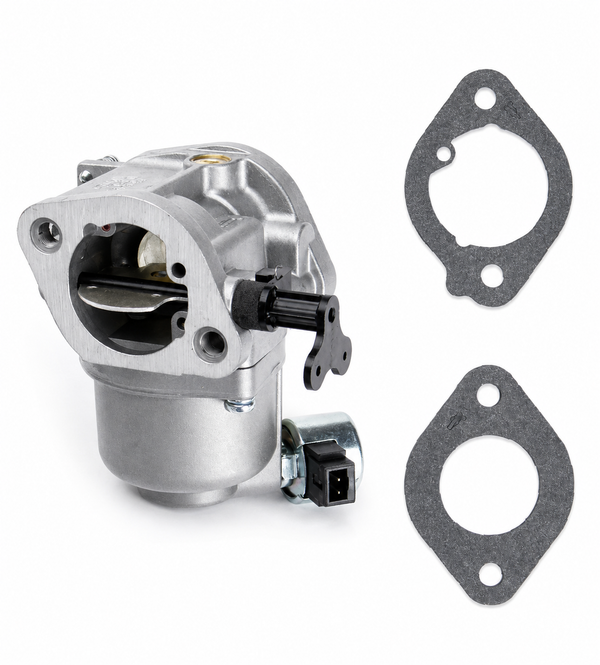

Carburetor
Oil Change

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Fuel leaking into the engine can dilute the oil and cause severe engine damage if not addressed. Do not run the engine if oil smells like gasoline or appears overfilled. After repairing, always change the engine oil before running.

Blows White Smoke

Head Gasket Failure

Possible Cause

Head Gasket Failure

A blown head gasket can cause compression loss, smoke, poor running, or external oil leaks.

What to check

Engine blowing blue or white smoke
Exhaust smoke coming from the crankcase
Engine oil extremely dark and smells like exhaust
Oil residue on fuel pump screen (if equipped with a fuel pump)

When this happens

The head gasket typically fails between the cylinder and valvetrain area, allowing exhaust gases to leak into the crankcase

Recommended Parts

Common repair parts for this issue

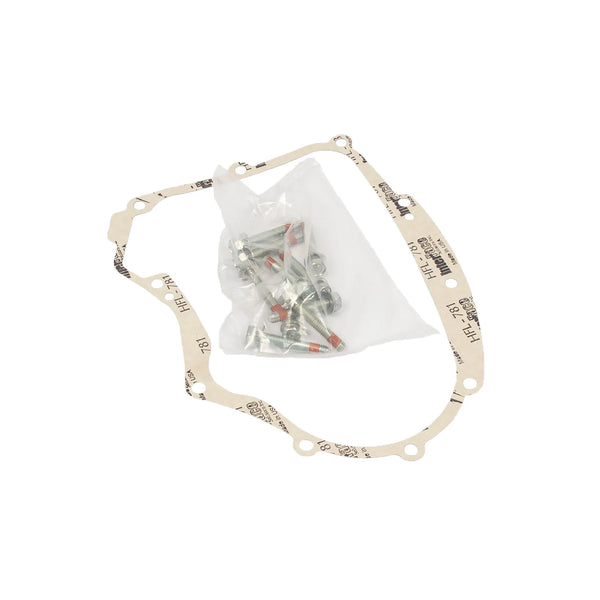

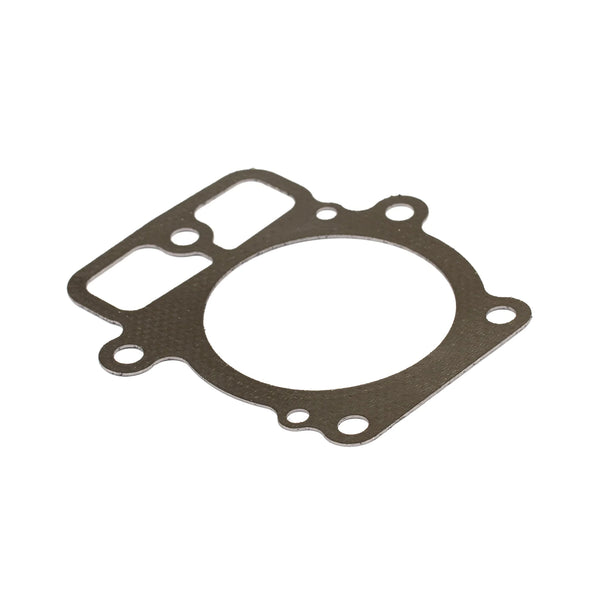

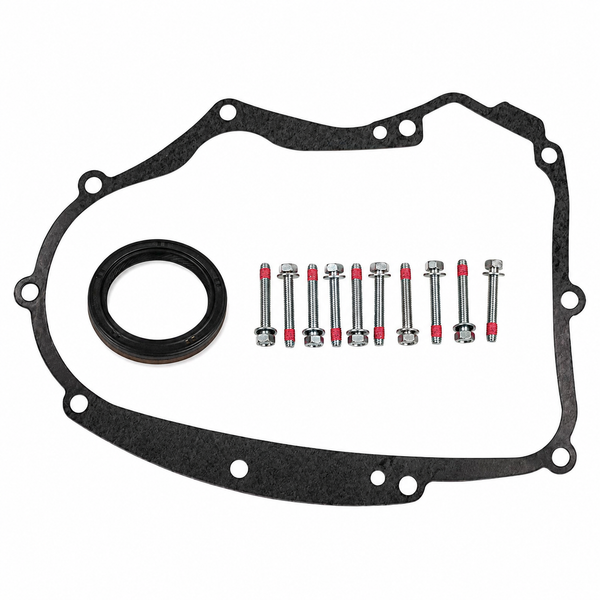

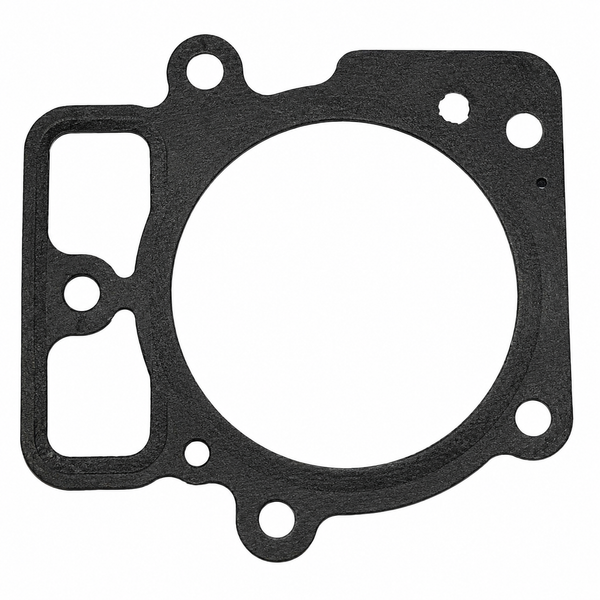

Head Gasket Replacement Kit
Oil Change

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Use your engine model to find the exact head gasket match. Our head gasket kits include everything needed to complete the repair.

Fuel Pump Diaphragm Failure

Possible Cause

Fuel Pump Diaphragm Failure

A failed fuel pump diaphragm can allow fuel to leak directly into the engine crankcase, contaminating the oil with gasoline. This can lead to strong fuel smell, rising oil levels, and potential engine damage if not corrected.

What to check

Strong smell of gasoline coming from the oil
Oil level appears overfilled or thinner than normal
Engine oil may feel watery or diluted
Engine may run rough
Engine may produce white smoke
Fuel pump shows signs of leaking or internal failure
No signs of carburetor flooding (helps rule out needle & seat issue)

When this happens

Occurs when the internal diaphragm wears out, cracks, or ruptures
More likely with age or prolonged sitting

Recommended Parts

Common repair parts for this issue

Fuel Pump
Change Engine Oil

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Fuel-contaminated oil can cause severe engine damage if the engine is operated. Do not run the engine until the issue is repaired and the oil has been changed. After replacement, always drain and refill with fresh oil before starting the engine.

Carburetor Needle & Seat Failure

Possible Cause

Carburetor Needle & Seat Failure

A worn or stuck carburetor needle and seat can allow fuel to continuously flow into the engine, leading to flooding, fuel in the oil, or even hydrolock.

What to check

When this happens

Occurs when debris, varnish, or wear prevents the needle from sealing
More likely after sitting with old fuel in the system

Recommended Parts

Common repair parts for this issue

Carburetor
Oil Change

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Smells Like Gas / Oil Level Rising

Carburetor Needle & Seat Failure

Possible Cause

Carburetor Needle & Seat Failure

A worn or stuck carburetor needle and seat can allow fuel to continuously flow into the engine, leading to flooding, fuel in the oil, or even hydrolock.

What to check

When this happens

Occurs when debris, varnish, or wear prevents the needle from sealing
More likely after sitting with old fuel in the system

Recommended Parts

Common repair parts for this issue

Carburetor
Oil Change

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Fuel Pump Diaphragm Failure

Possible Cause

Fuel Pump Diaphragm Failure

What to check

When this happens

Occurs when the internal diaphragm wears out, cracks, or ruptures
More likely with age or prolonged sitting

Recommended Parts

Common repair parts for this issue

Fuel Pump
Change Engine Oil

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Clicking sound / Engine Won't Crank Over

Starter Solenoid Failure

Possible Cause

Starter Solenoid Failure

A faulty starter solenoid can prevent power from reaching the starter motor, resulting in a no-crank or clicking condition when turning the key. This is a common electrical issue on riding mowers and small engine equipment.

What to check

Turning the key produces a clicking sound but engine does not crank
No response from starter when key is turned
Battery is fully charged and tests good
Starter motor tests good when bypassed or bench tested
Intermittent starting issues (sometimes cranks, sometimes does not)
Voltage present at solenoid but not passing through to starter

When this happens

Occurs over time due to electrical wear, corrosion, or internal contact failure
More likely on older equipment or units exposed to moisture and vibration
May fail gradually (intermittent clicking) or suddenly (no response at all)

Starter solenoids are available in 3-pole and 4-pole configurations. Your mower’s wiring determines which type is required. Your machine will either have a 3-pole or 4-pole starter solenoid, and these two types are NOT interchangeable.

3-pole solenoid uses one small terminal for the ignition/start signal and grounds through the frame of the machine.
4-pole solenoid Uses two small terminals — one for the ignition/start signal and one for a dedicated ground.

Recommended Parts

Common repair parts for this issue

Starter Solenoid - Always verify the correct solenoid type for your machine before installing.

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Starter solenoid issues are often mistaken for a bad battery or starter motor. Always confirm the battery is fully charged and connections are clean before replacing components. Installing the wrong type of solenoid can result in: -No crank / no start condition -Constant cranking or electrical issues -Potential damage to the wiring system

Battery Not Charging / Mower Not Able Restart After Shutting Off / PTO Shuts Off

Bad Voltage Regulator

Possible Cause

Bad Voltage Regulator

A failing voltage regulator can cause a range of electrical issues, from weak starting to battery damage. It controls the charging system output, ensuring your battery receives the correct voltage. A bad voltage regulator may cause no start condition, no restart after running, and PTO disengages while mowing.

What to check

Check battery voltage with engine running (should be ~13.5–14.5V)
Inspect wiring for loose, corroded, or damaged connections
Verify regulator ground is clean and secure
Look for melted connectors or burnt wiring
Test battery condition (rule out a bad battery)

When this happens

After the engine has been running for a while (battery drains instead of charging)
When electrical load increases (PTO engaged, headlights on)

Important Note – Regulator Types:
Some engines use either a low amperage or high amperage voltage regulator, and they are not interchangeable.

Low amp systems are typically used on basic setups with minimal electrical load
High amp systems are used when running additional components like electric PTOs, lights, or charging larger batteries

Recommended Parts

Common repair parts for this issue

Voltage Regulator ⚠️ You may need to visually compare your current regulator to product photos or check your engine’s specifications to confirm the correct type before ordering.

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Running with a bad voltage regulator can damage your battery, wiring, and other electrical components. Overcharging can cause the battery to swell or leak, while undercharging can leave you unable to restart the engine.

Common Areas for Oil Leaks

Sump Gasket Leak

Possible Cause

Sump Gasket Leak

A leaking sump gasket allows oil to escape from the seam between the engine block and the lower crankcase (sump). This is a common oil leak point on Briggs & Stratton V-Twin engines and is often mistaken for a crankshaft seal leak or valve cover leak.

What to check

Oil leaking from the lower portion of the engine
Oil visible along the horizontal seam between engine block and sump
Oil coating the underside of the engine or mower deck
Leak appears around the perimeter of the engine base, not just at the crankshaft
Top of engine is dry (no valve cover leak present)

When this happens

Occurs as gasket material ages, compresses, or degrades
More likely on engines with high hours or frequent heat cycles
Can develop after engine vibration loosens mounting bolts over time

Recommended Parts

Common repair parts for this issue

Sump Gasket Kit
Oil change

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Repairing a sump gasket leak requires partial engine disassembly. Improper installation can lead to continued leaks or engine damage. Always torque bolts to manufacturer specifications. Many repairs are best done as a complete service. Our gasket kits include the crankshaft seal to help prevent future leaks while the engine is already disassembled.

Crankshaft Seal Leak

Possible Cause

Crankshaft Seal Leak

A worn or damaged crankshaft seal can allow oil to leak from the lower part of the engine, typically around the crankshaft where it exits the engine block. These leaks often appear underneath the engine, near the pulley area, or on the ground.

What to check

Oil leaking from the bottom of the engine
Oil buildup around the crankshaft or PTO shaft area
Oil dripping onto the deck or ground beneath the engine
Oil present behind or around the engine pulley
Top of engine appears dry (no valve cover leak)

When this happens

More common on engines with higher hours or wear
Can occur if debris damages the seal lip
May happen after prolonged storage or dry seal conditions
Sometimes follows overheating or excessive crankcase pressure from blown head gasket

Recommended Parts

Common repair parts for this issue

Crankshaft Oil Seal
Oil Change

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Operating the engine with an active oil leak can lead to low oil levels and severe engine damage. Repair leaks promptly and verify oil level before use.

Valve Cover Gasket Leak

Possible Cause

Valve Cover Gasket Leak

A worn, brittle, or improperly sealed valve cover gasket can allow oil to leak from the top of the engine. This is one of the most common and easiest oil leaks to identify and fix.

What to check

Oil visible around the valve cover area
Oil dripping down the side of the engine
Burning oil smell (oil contacting hot engine muffler)
Debris buildup stuck to oily areas near the valve cover

When this happens

Common on overhead valve (OHV) engines
More likely as the gasket ages, hardens, or shrinks
Can occur after valve adjustments if gasket is reused or misaligned
Frequent on engines with high run time or heat cycles

Recommended Parts

Common repair parts for this issue

Valve Cover Gasket
Top off oil as needed

Use our Engine Model Lookup Tool to find the exact parts for your engine.

Note: Running an engine with low oil due to leaks can cause severe engine damage. Always check and maintain proper oil levels before operating.

Disclaimer: The information provided is for general troubleshooting purposes only. Small Engines RX is not responsible for misdiagnosis, incorrect repairs, or any damage resulting from use of this information. Proper diagnosis is the responsibility of the customer.

Engine, Equipment, or Part Number Lookup

Don’t know your model number? Learn how to find it

Compatible Parts for all Briggs & Stratton Intek V-Twins

These parts are associated with this engine family, but fitment can vary by exact model and spec number. Please confirm your exact model number before ordering.
